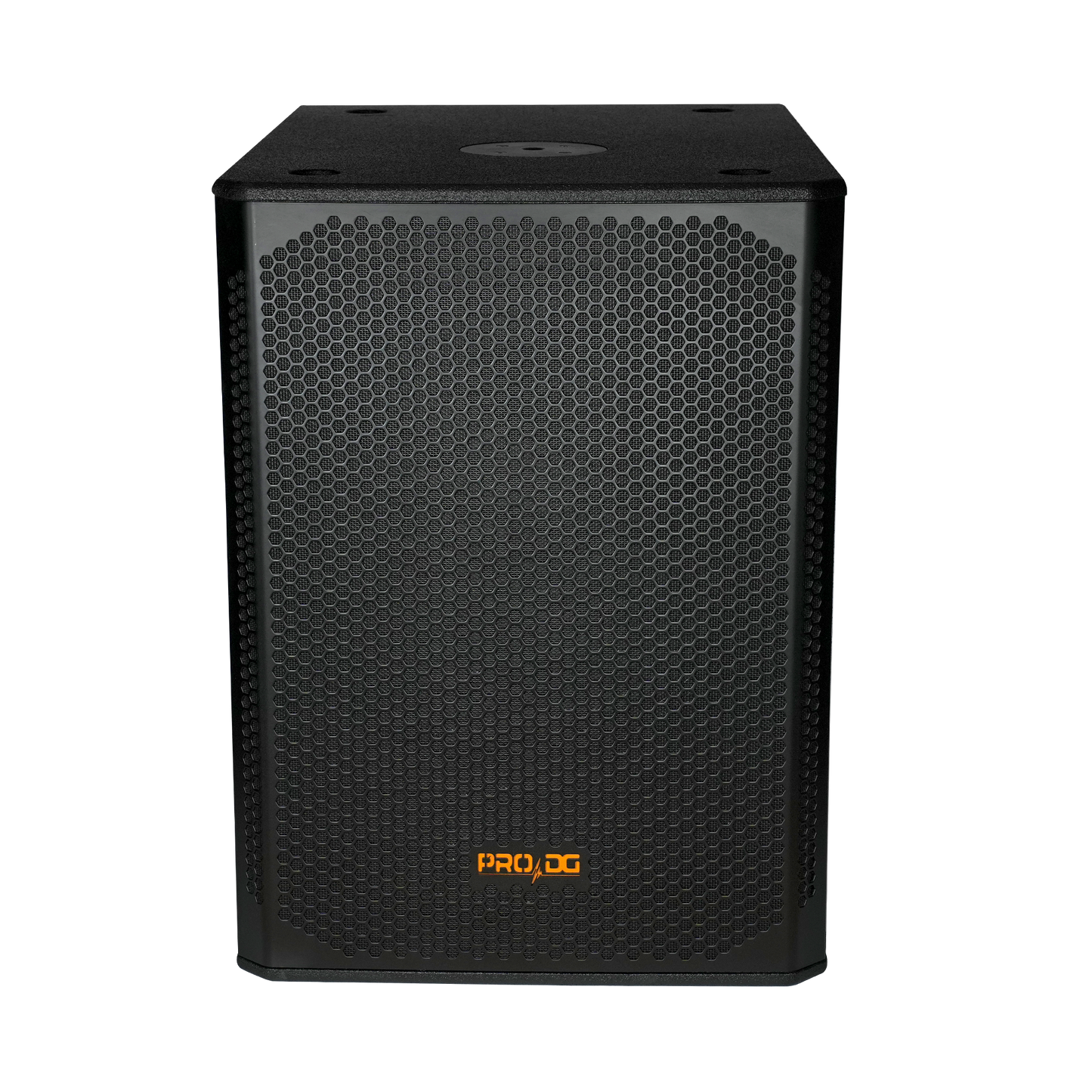

PRO DG Systems Powered 18" 1600W RMS, 138 dB, Plywood Subwoofer AVIATOR S118A

The ProDG Systems AVIATOR S-118-A delivers powerful low-frequency performance in a compact and highly efficient enclosure designed for demanding professional audio applications.

Built around a premium 18-inch Lavoce Italiana transducer and powered by a high-performance Class-D amplifier, the AVIATOR S-118-A provides deep bass response, high output capability, and exceptional reliability for churches, live events, DJs, theaters, and touring productions.

Integrated DSP processing includes multiple factory presets, advanced limiter protection, and network control through ProDGnet, allowing easy system optimization and remote monitoring.

The enclosure is constructed from CNC-machined birch plywood with a weather-resistant polyurea finish and steel grille protection, making it suitable for both portable and installed applications.

The AVIATOR S-118-A pairs perfectly with the AVIATOR 112-A and AVIATOR 115-A systems to create high-performance PA configurations with impressive SPL and musical low-frequency response. (ProDG America - PDG Logo⁠)

FEATURES

• Professional Powered 18” Subwoofer
• Designed in Spain
• Premium Lavoce Italiana Transducer
• 1600 Watts RMS Amplifier
• 3200 Watts Peak Power
• Class-D Amplifier Technology
• Integrated 24-bit DSP Processing
• 5 Factory DSP Presets
• ProDGnet Remote Monitoring Capability
• Birch Plywood Cabinet Construction
• Polyurea Weather Resistant Finish
• XLR Input and Link Output
• PowerCON Connectivity
• Stand Mount Socket Included
• Ideal for Churches, DJs, Touring and Installations

SPECIFICATIONS

System Type: Powered Single 18” Subwoofer
Amplifier Power: 1600 Watts RMS
Peak Power: 3200 Watts Peak
Frequency Response: 35 Hz – 125 Hz
Maximum SPL: 138 dB Peak
Dispersion: Omnidirectional
Nominal Impedance: 8 Ohms
DSP: 24-bit / 96 kHz
DSP Presets: 5 Factory Presets
Network Control: ProDGnet RS485 In/Out
Power Supply: 90V – 265V AC / 50-60Hz  (ProDG America - PDG Logo⁠)

LOW FREQUENCY SECTION

Driver: 1 x 18” Lavoce Italiana
Magnet Type: Ferrite
Power Handling: 1500W RMS / 3000W Program / 6000W Peak
Recommended Crossover: Up to 90 Hz Linkwitz-Riley 24 dB/Oct  (ProDG America - PDG Logo⁠)

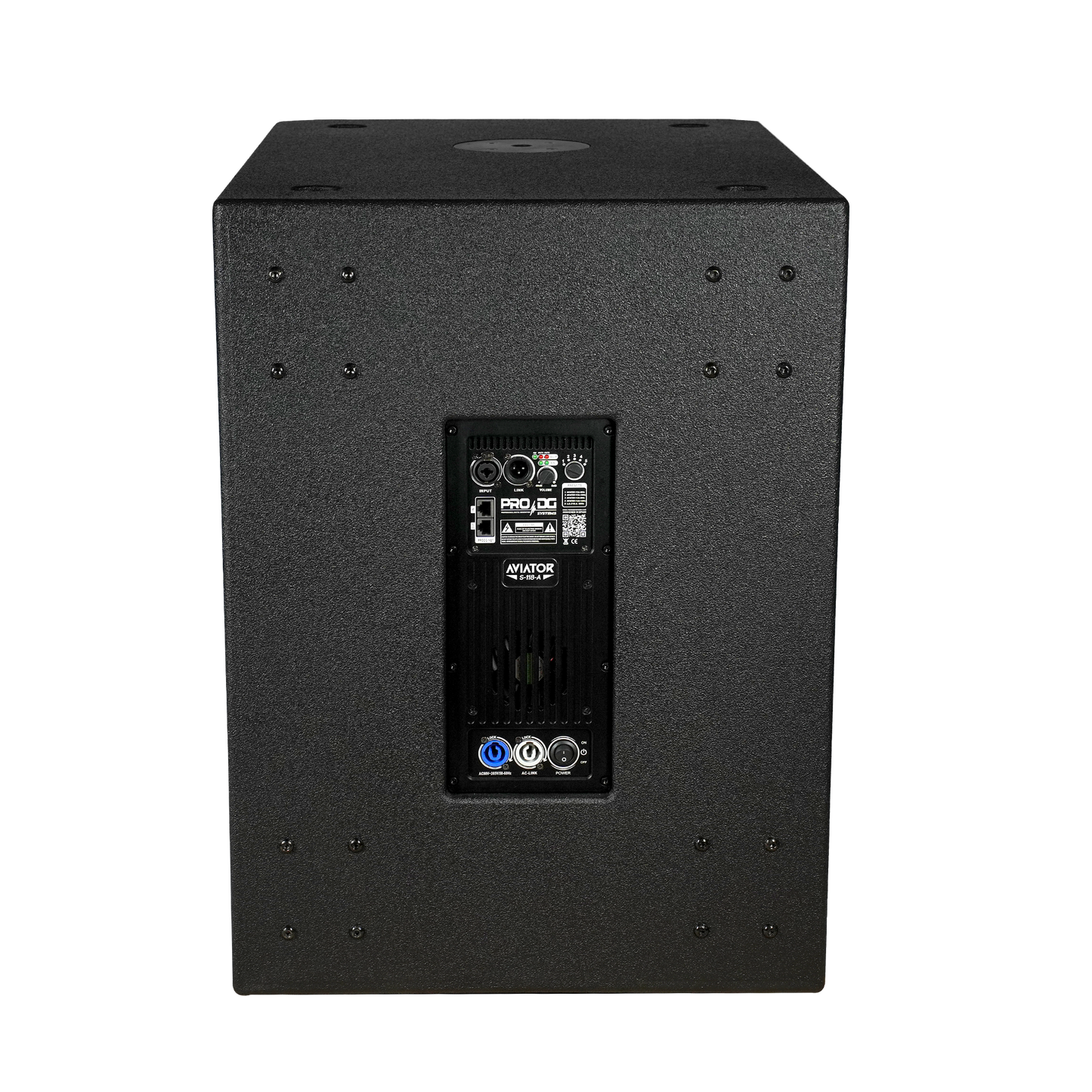

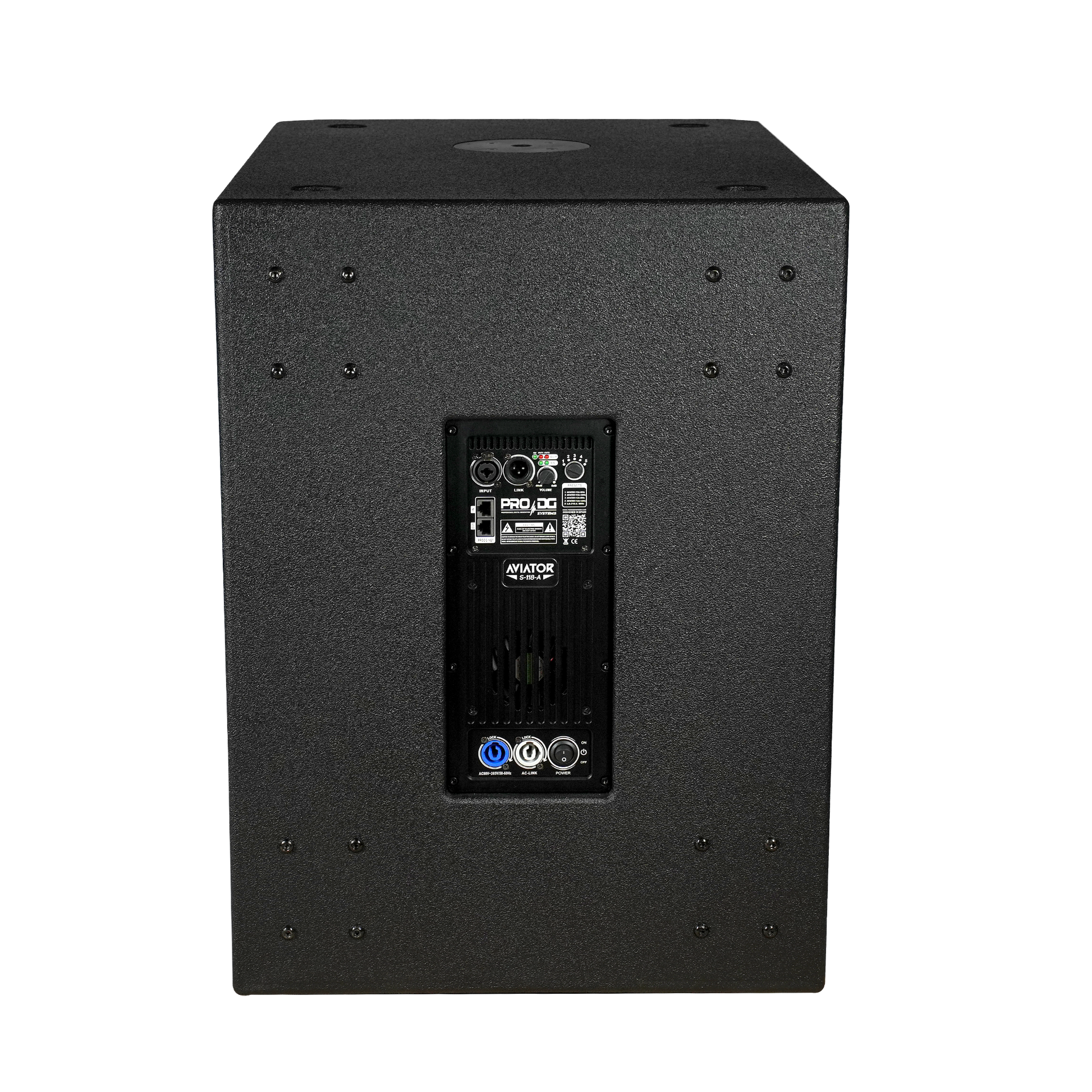

CONNECTIVITY

Input: XLR Female
Output: XLR Male Link Output
Network: RS485 ProDGnet
Power Input: PowerCON NAC3FCB  (ProDG America - PDG Logo⁠)

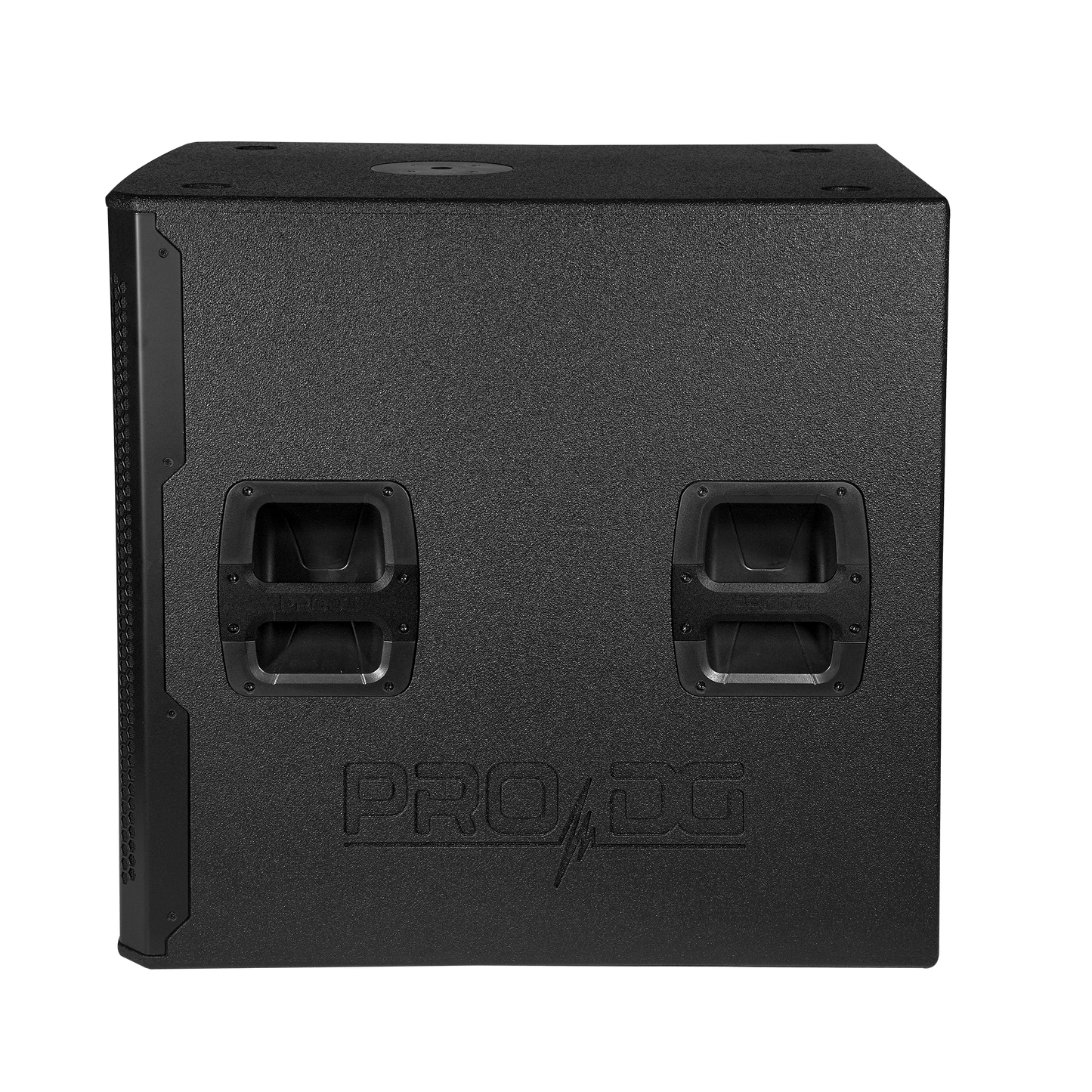

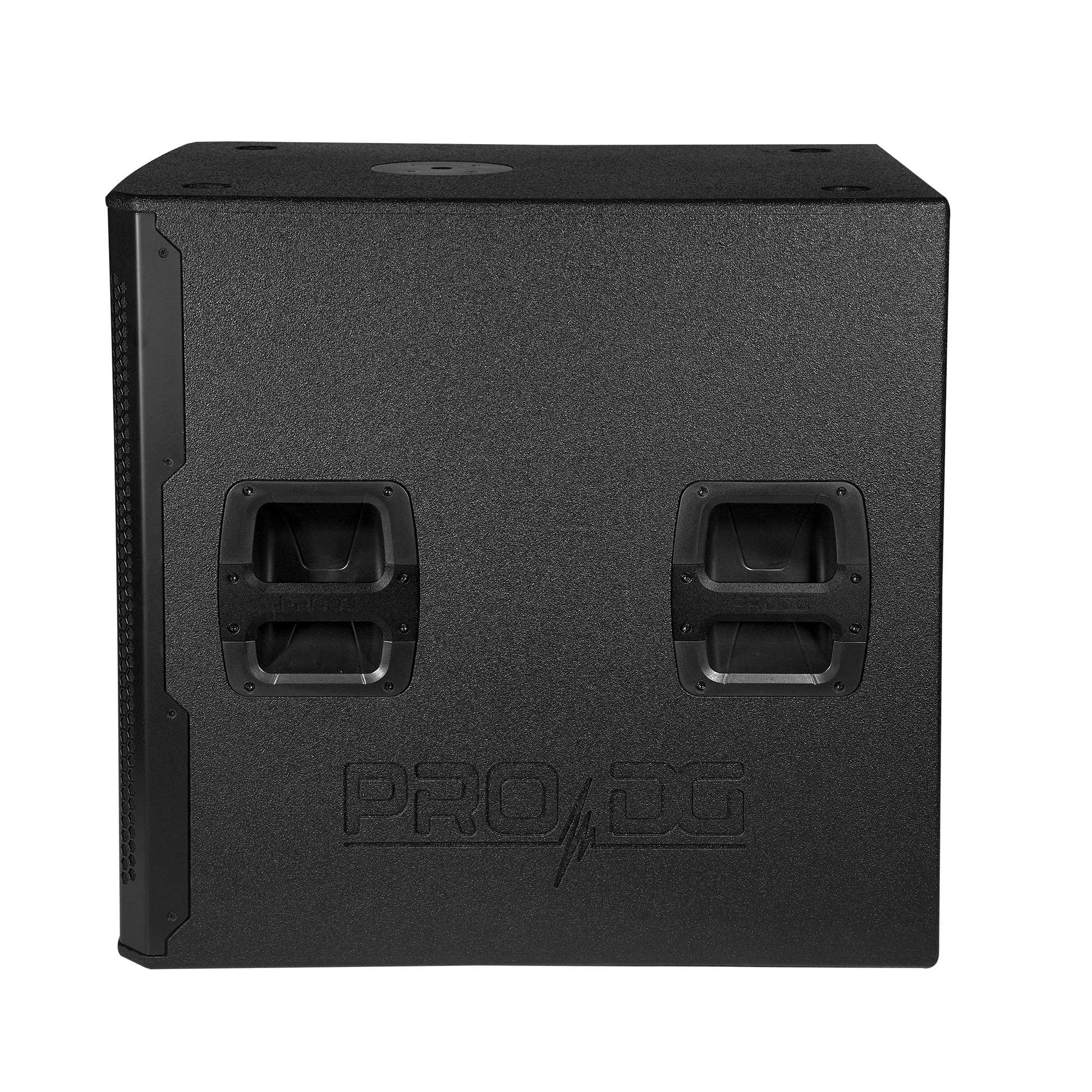

CABINET

Construction: CNC Machined Birch Plywood
Finish: Polyurea Impact and Weather Resistant Coating

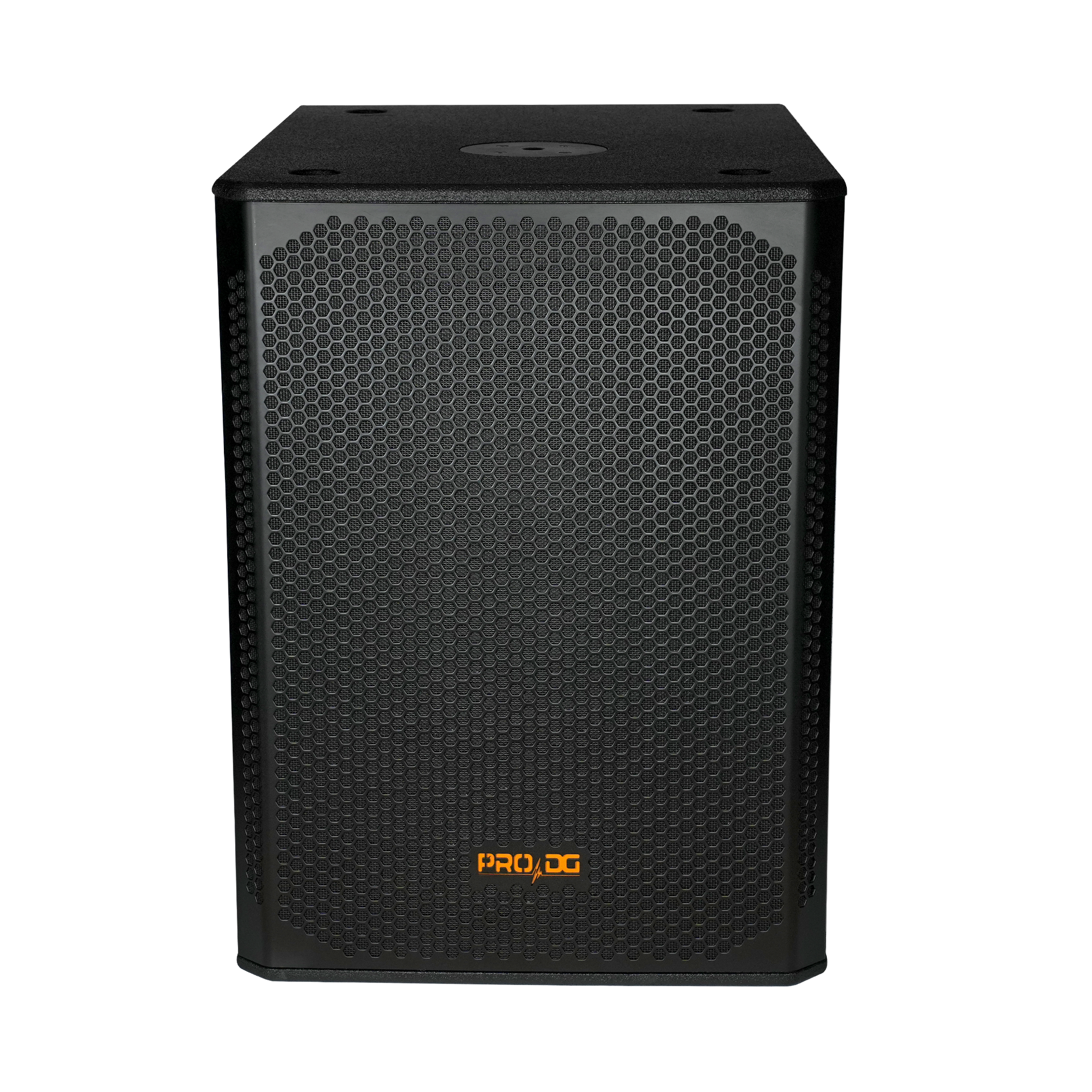

Front Grille: Steel with Acoustic Foam
Pole Mount: Included
Color: Black  (ProDG America - PDG Logo⁠)

DIMENSIONS

Height: 27.48”
Width: 20.50”
Depth: 28.50”  (ProDG America - PDG Logo⁠)

WEIGHT

116.8 lbs (53 kg)  (Prodg Systems⁠)

APPLICATIONS

• Churches
• Live Sound Reinforcement
• Touring Systems
• DJs
• Outdoor Events
• Theaters
• Corporate Events
• Permanent Installations
