PSG AUDIO GOLIATH-18
18″ Active Subwoofer with DSP & Frequency Selector
The GOLIATH-18 active subwoofer is built to deliver exceptional low-frequency performance with clarity, power, and precision. Designed with advanced DSP control and a high-efficiency amplifier, it produces transparent, powerful, and punchy bass, making it suitable for a wide variety of professional applications—from live sound and touring systems to clubs, venues, DJs, and installations.
Featuring selectable subwoofer modes, the GOLIATH-18’s DSP can be easily optimized for different setups, ensuring maximum impact and performance in any environment. Its multifunctional enclosure, crafted with ergonomically designed carrying handles, offers versatile placement and transport options, making it ideal for both mobile use and fixed installations.
Key Features
-
High-Power 18″ Woofer
Loose-pressed paper cone delivers deep, rich low frequencies with excellent responsiveness. -
Heavy-Duty Plywood Cabinet
Built with thick, durable professional plywood for maximum strength, reduced resonance, and superior acoustic performance. Finished with an environmentally safe, elegant coating.
| Specification | Details |
|---|---|
| Subwoofer Size | 18-inch Woofer |
| Peak Power | 3000 Watts |
| Voltage Compatibility | AC 115V ~ 60Hz / AC 230V ~ 50Hz |

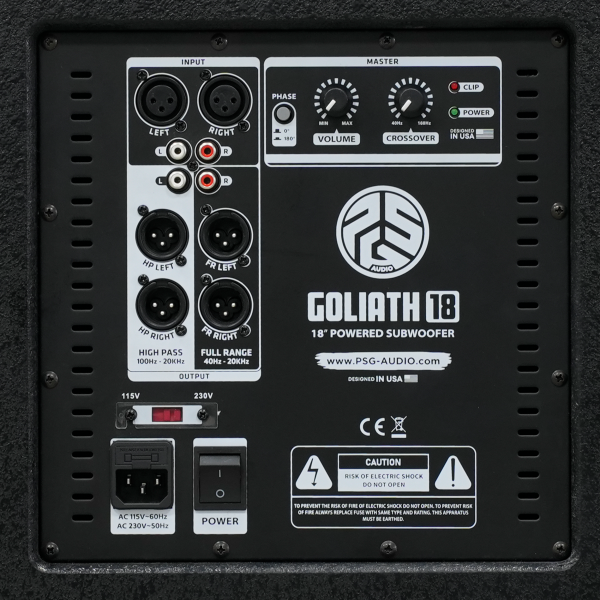

AMPLIFIER FUNCTIONS & CONTROLS
| Function / Control | Description |
|---|---|
| 1. Left/Right XLR Line Input | Balanced inputs for connecting mixers or audio processors |
| 2. RCA Line Input | Unbalanced input for consumer audio devices |
| 3. RCA Line Output | Pass-through output for linking to additional speakers |
| 4. Left/Right High Pass 100Hz–20kHz | Sends filtered high-frequency signal to top speakers |
| 5. Left/Right Full Range 40Hz–20kHz | Sends unfiltered full-range signal |
| 6. Voltage Selector (115V/230V) | Switches between global voltage standards |
| 7. AC Input | IEC power input |
| 8. Power Switch | Turns the unit ON/OFF |
| 9. Master Volume | Controls overall output level |
| 10. Clip Indicator | Illuminates when the signal is distorting |
| 11. Crossover Switch | Selects crossover mode |
| 12. Power Indicator | Green LED when powered ON |
| 13. Phase Switch | Adjusts phase alignment for optimal bass response |
