Pro DG 18" Powered Column System 2400 Watts and Bluetooth IRIS
Pro DG 18" Powered Column System 2400 Watts and Bluetooth IRIS
Couldn't load pickup availability

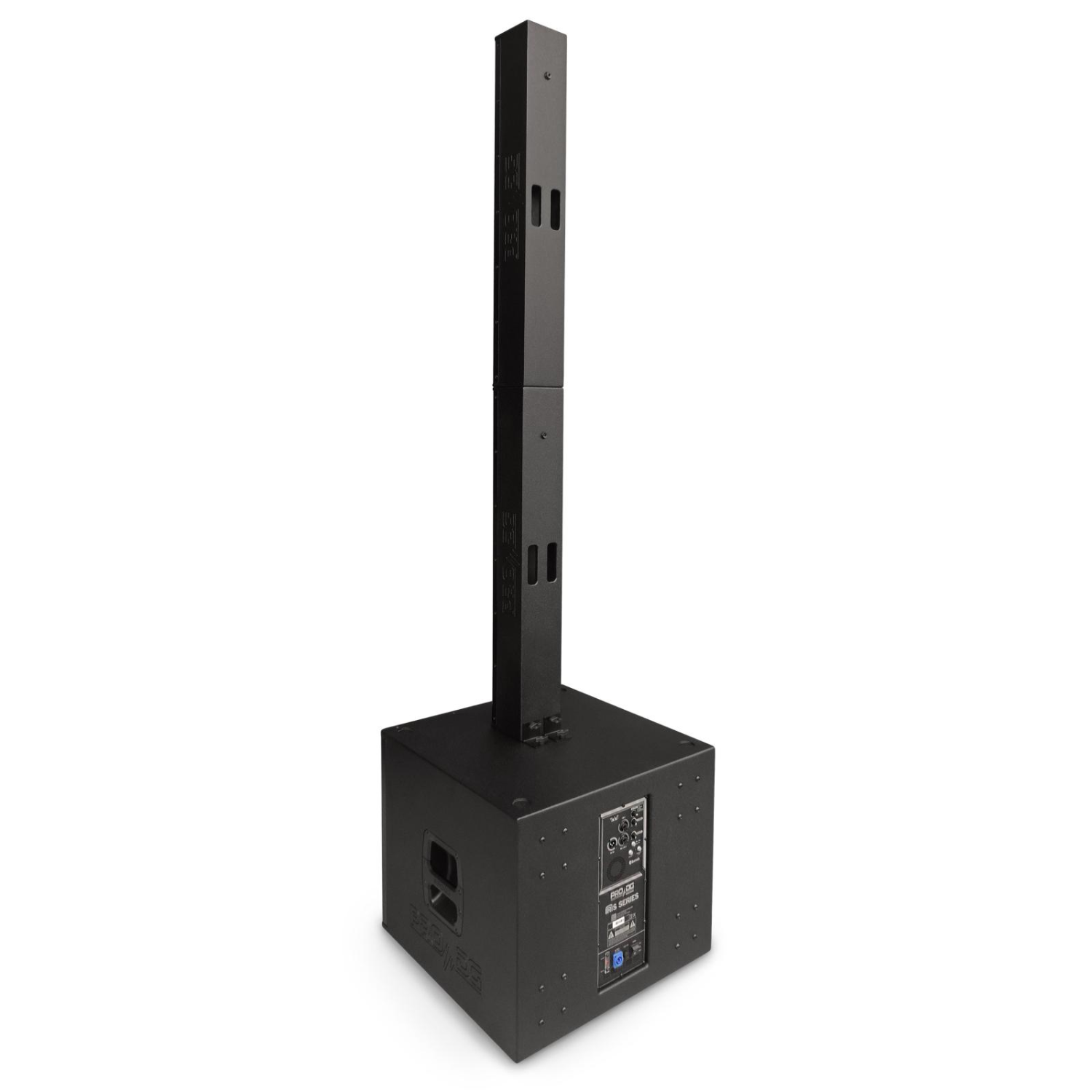

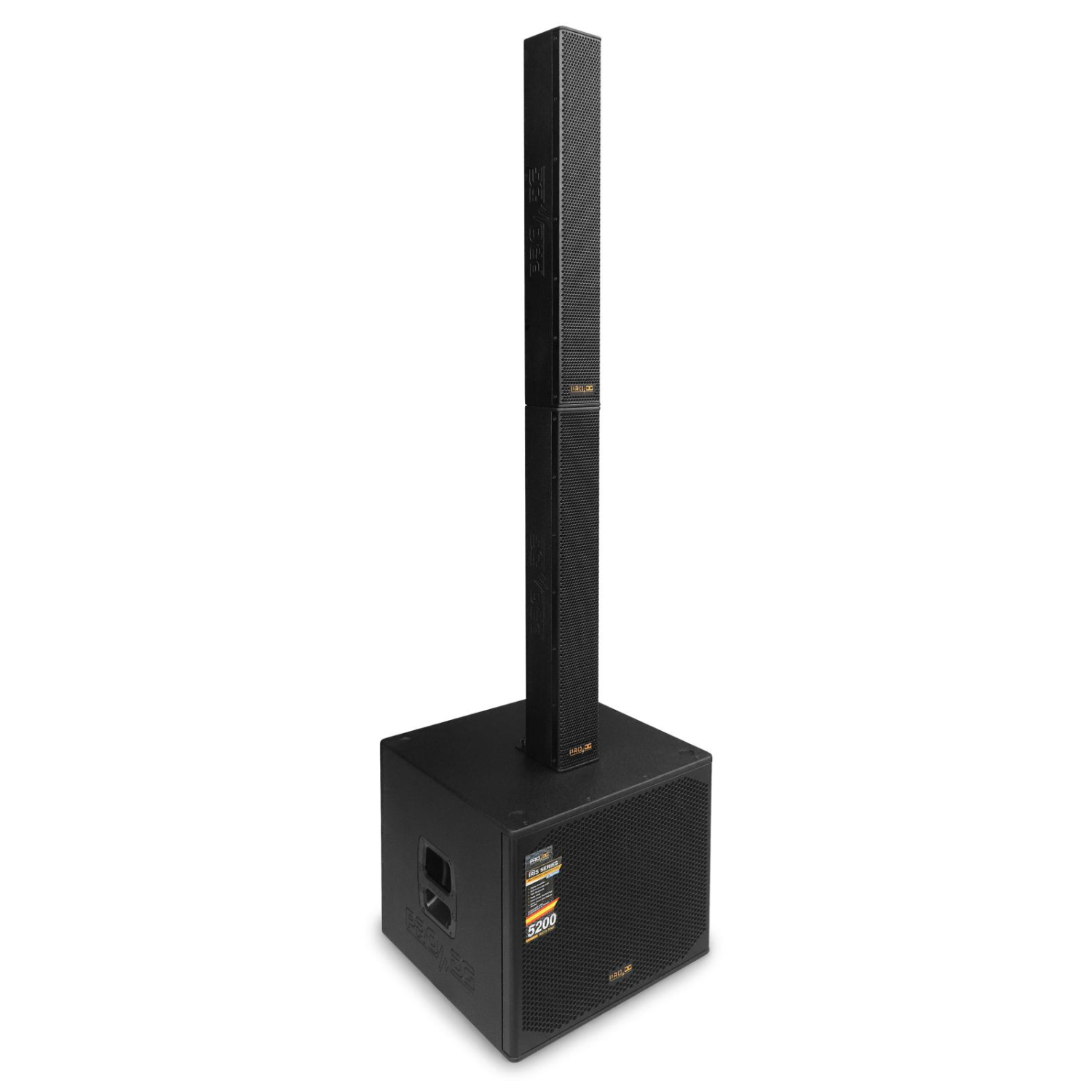

The Iris Series represents Pro DG Systems' pinnacle column-type configuration, engineered for permanent installations, portable deployments, and diverse point source applications demanding exceptional performance with minimal visual footprint. This comprehensive system comprises three integrated components: Column 1 features six 3.5" woofers (40W RMS each) paired with a 0.75" compression driver (50W RMS) and 90x40º dispersion diffuser, delivering precise mid and high-frequency reproduction. Column 2 incorporates six additional 3.5" woofers (40W RMS each) for reinforced mid-range clarity. The dedicated 18" subwoofer (800W RMS) anchors the system with authoritative low-frequency extension. Combined, this architecture delivers 2400 watts of integrated power with Bluetooth connectivity, making the Iris Series an ideal solution for venues requiring professional-grade audio with elegant, unobtrusive design.
TECHNICAL DATASHEET
|
COLUMNS (TOPS) |
|
|
Components |

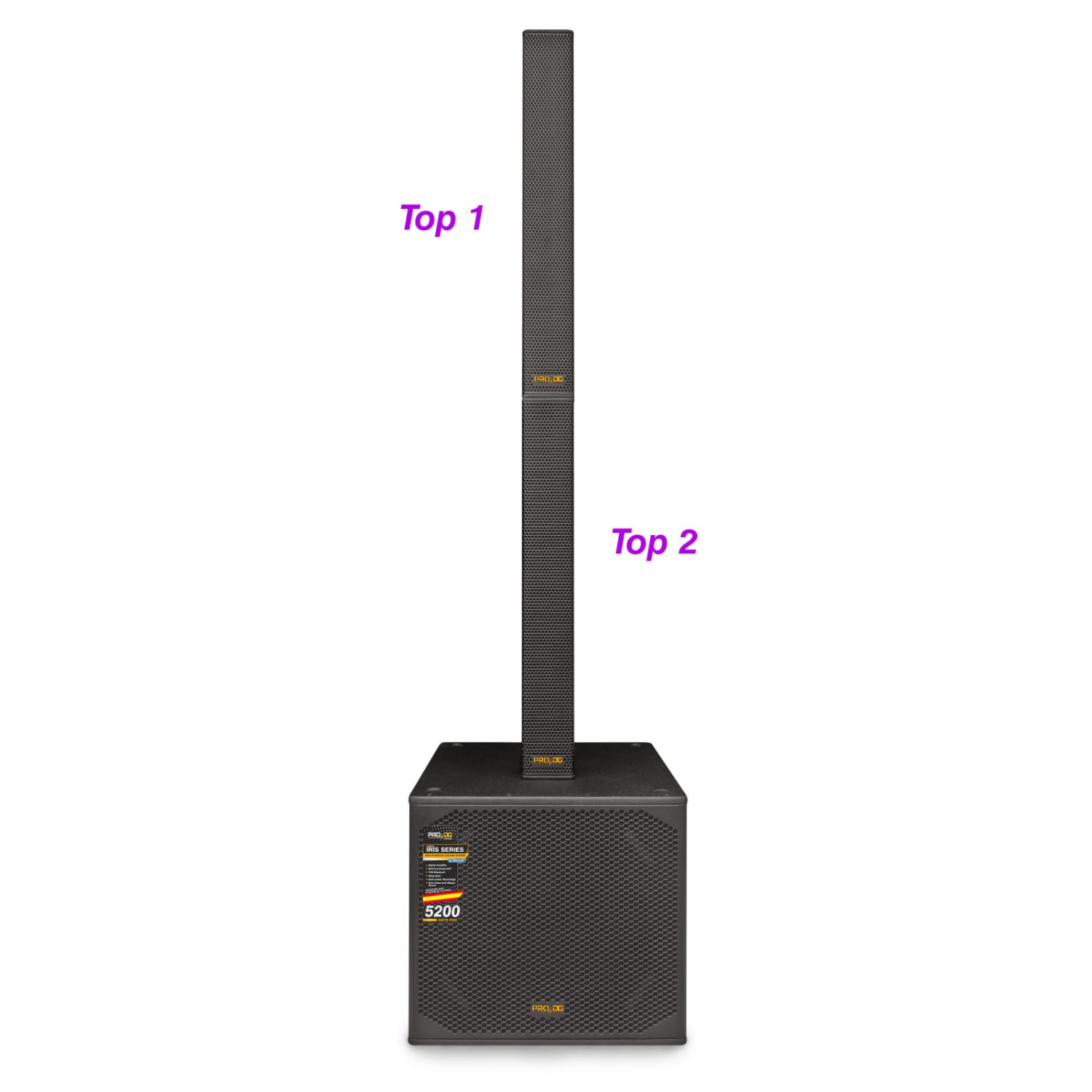

Top 1: 6 Pro DG Systems woofers of 3.5”, 40 W RMS - 8 Ohm + Pro DG Systems compression driver of 0.75”, 50 W RMS - 8 Ohm which is coupled to a diffuser with a dispersion of 90x40º (HxV). Top 2: 6 Pro DG Systems woofers of 3.5”, 40 W RMS - 8 Ohm. |
|
Frecuency range |
150 - 19000 Hz |
|
Power handling |
500 W RMS (both tops) / 1000 W program / 2000 W peak. |
|
SPL max |
129 dB (both tops). |
|
Connection |
“Wireless” through joint supports. |
|
Construction |
CNC-machined birch plywood. Perforated steel front grille with oven dried black powder-coated electrostatic paint finish. Includes acoustic foam. |
|
Paint |
Special polyurea finish resistant to impacts and inclement weather. Black color (standard). |
|
Dimensions of each column (Height x Width x Depth) |
892 x 125 x 140mm (35,12 x 4,92 x 5,51in). |
|
Packaging dimensions - both columns together (Height x Width x Depth) |
1005 x 205 x 385mm (39,57 x 8,07 x 15,16in). |
|
Weight |
Top 1: 11,3 Kg (24,91 lbs) net. Top 2: 10,2 Kg (22,49 lbs) net / 23,5 Kg (51,81 lbs) with packaging (both tops). |
|

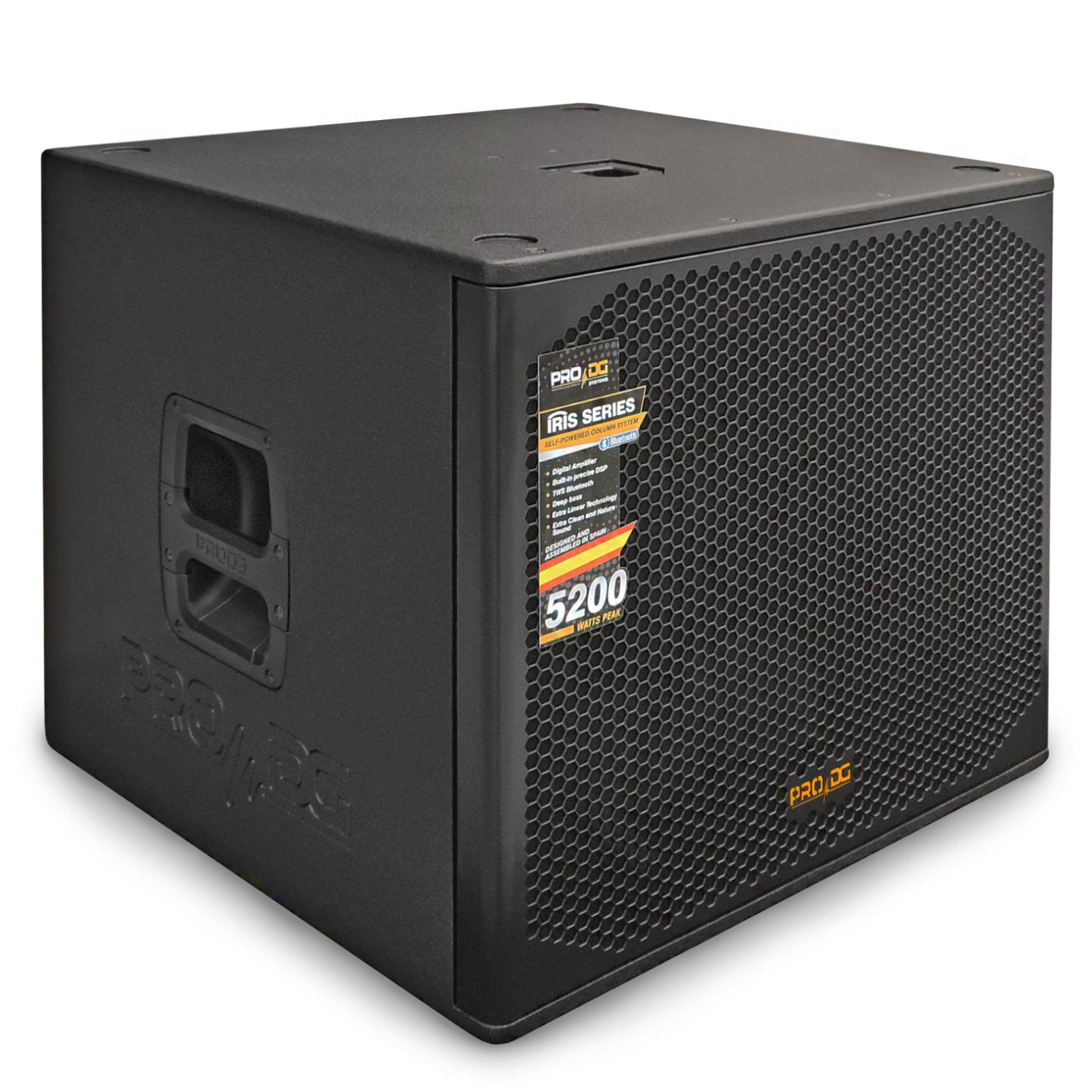

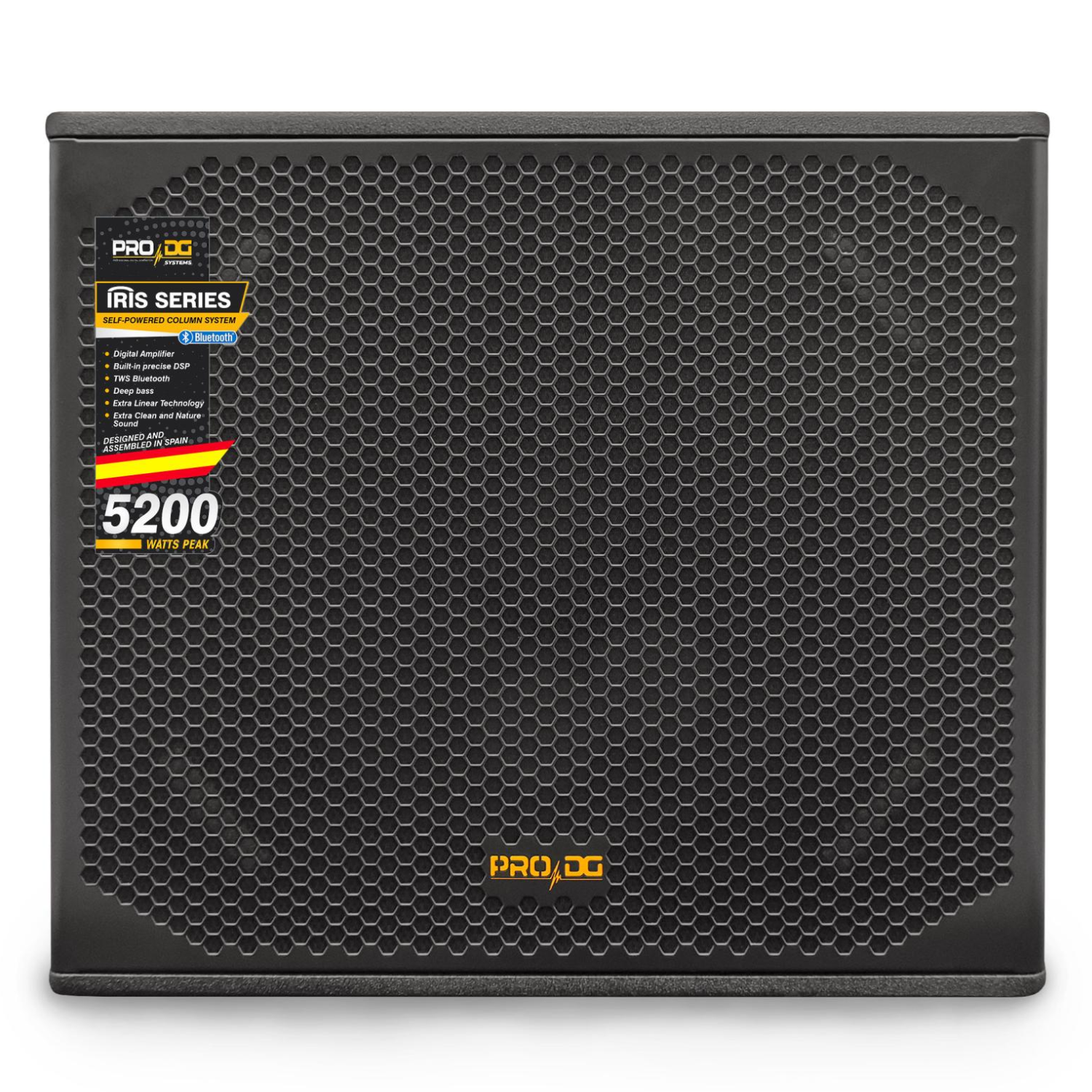

SUBWOOFER |
|
|
Component |
1 Pro DG Systems speaker of 18”, 800 W RMS - 8 Ohm. |
|
Frecuency range |
35 - 150 Hz. |
|
Power handling |
800 W RMS / 1600 W program / 3200 W peak. |
|
SPL max |
133 dB. |
|
Amplifier |
State-of-the-art Class-D. DSP processor with 4 factory presets (Live, Playback /DJ, Speech, Only Sub). |
|
Connection |
“Wireless” through joint supports. 2 XLR/Jack combo inputs, with microphone and line selector on channel 2 + XLR link. Bluetooth connection and TWS function. PowerCON (current supply). |
|

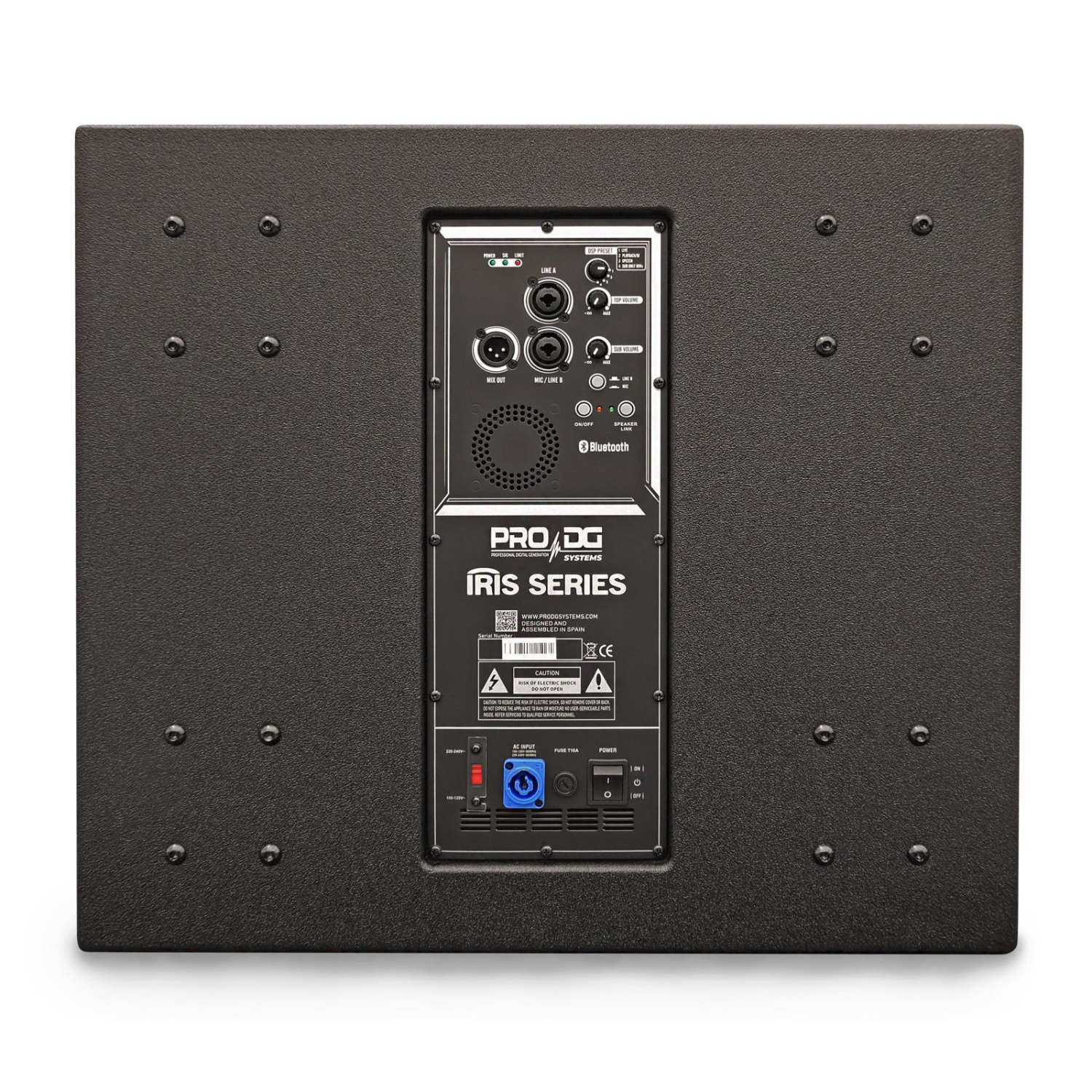

Controls |
On/Off switch, independent top and subwoofer volume controls, Line/Mic switch, Bluetooth on/off switch, TWS switch, DSP preset selector. |
|
Power supply |
100~240V 50/60Hz with voltage selector. |
|
Protection |
Overvoltage protection up to 135/264 V AC, output overload protection, clip, limiter. |
|
Construction |
CNC-machined birch plywood. Perforated steel front grille with oven dried black powder-coated electrostatic paint finish. Includes acoustic foam. |
|
Paint |
Special polyurea finish resistant to impacts and inclement weather. Black color (standard). |
|
Dimensions (Height x Width x Depth) |
545 x 600 x 580mm (21,46 x 23,62 x 22,84in). |
|
Packaging dimensions (Height x Width x Depth) |
615 x 675 x 655mm (24,21 x 26,58 x 25,79in). |
|
Weight |
34,5 Kg (76,06 lbs) net / 36,5 Kg (80,47 lbs) with packaging.cn |
