PSG AUDIO UGX-20II – Wireless Performance Beyond Expectations

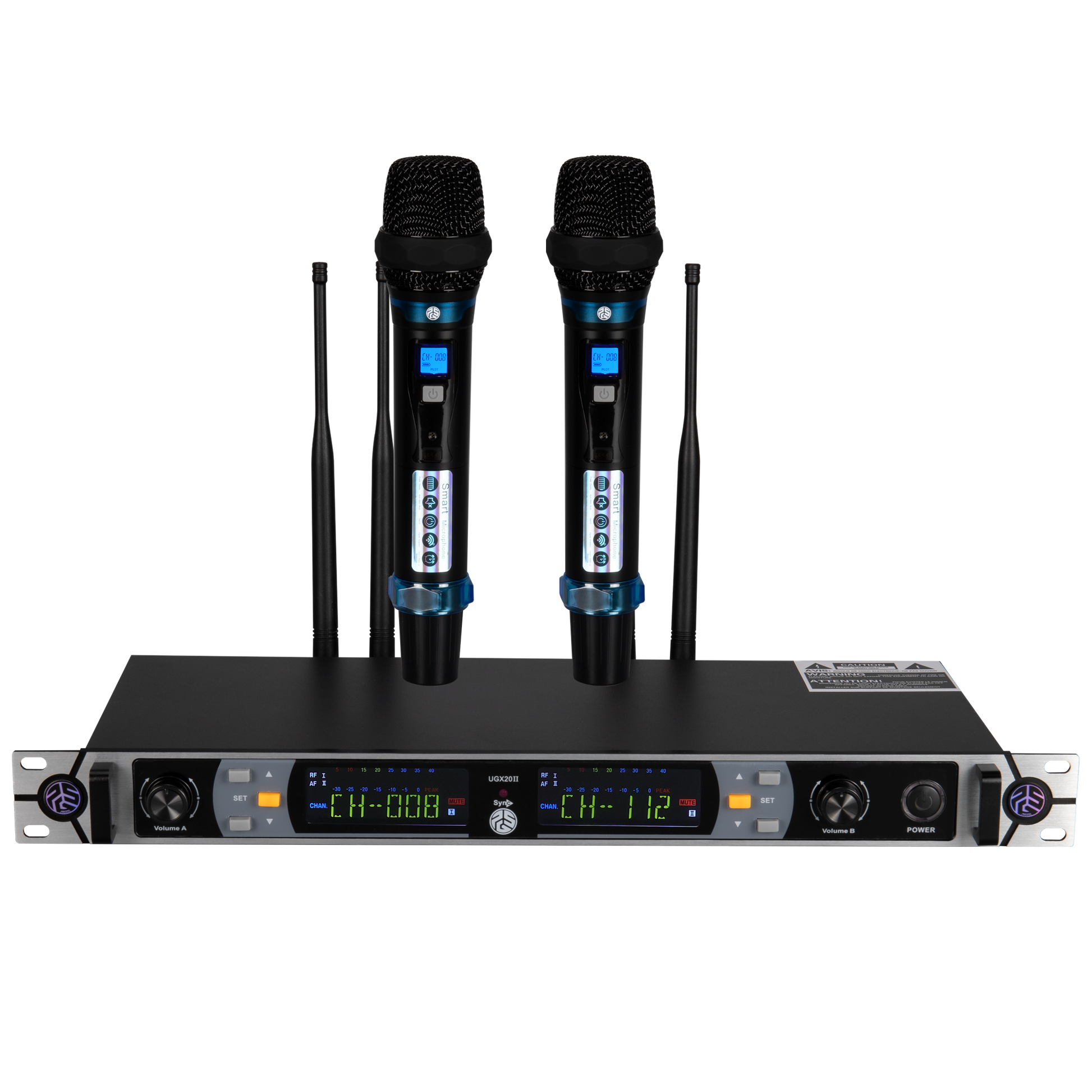

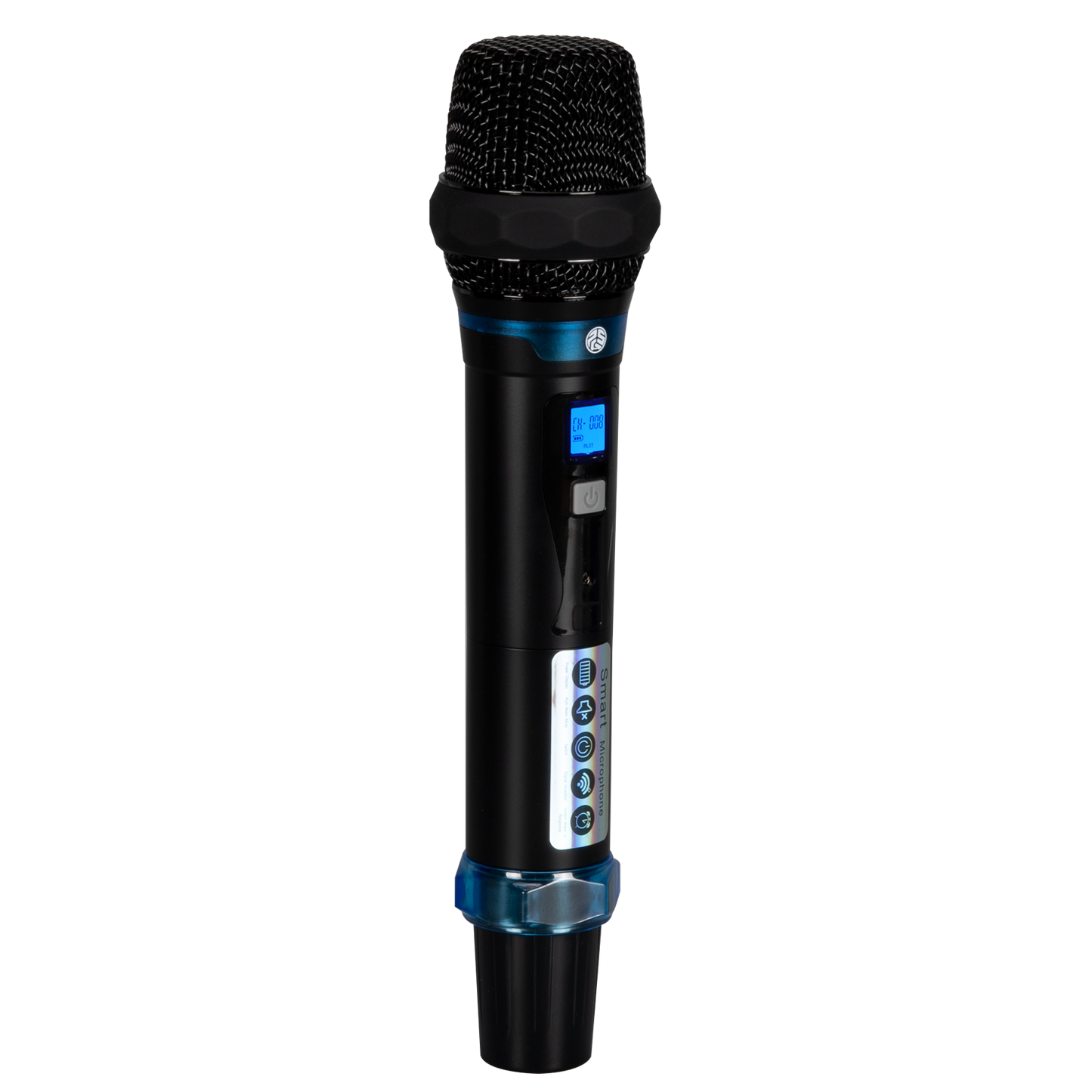

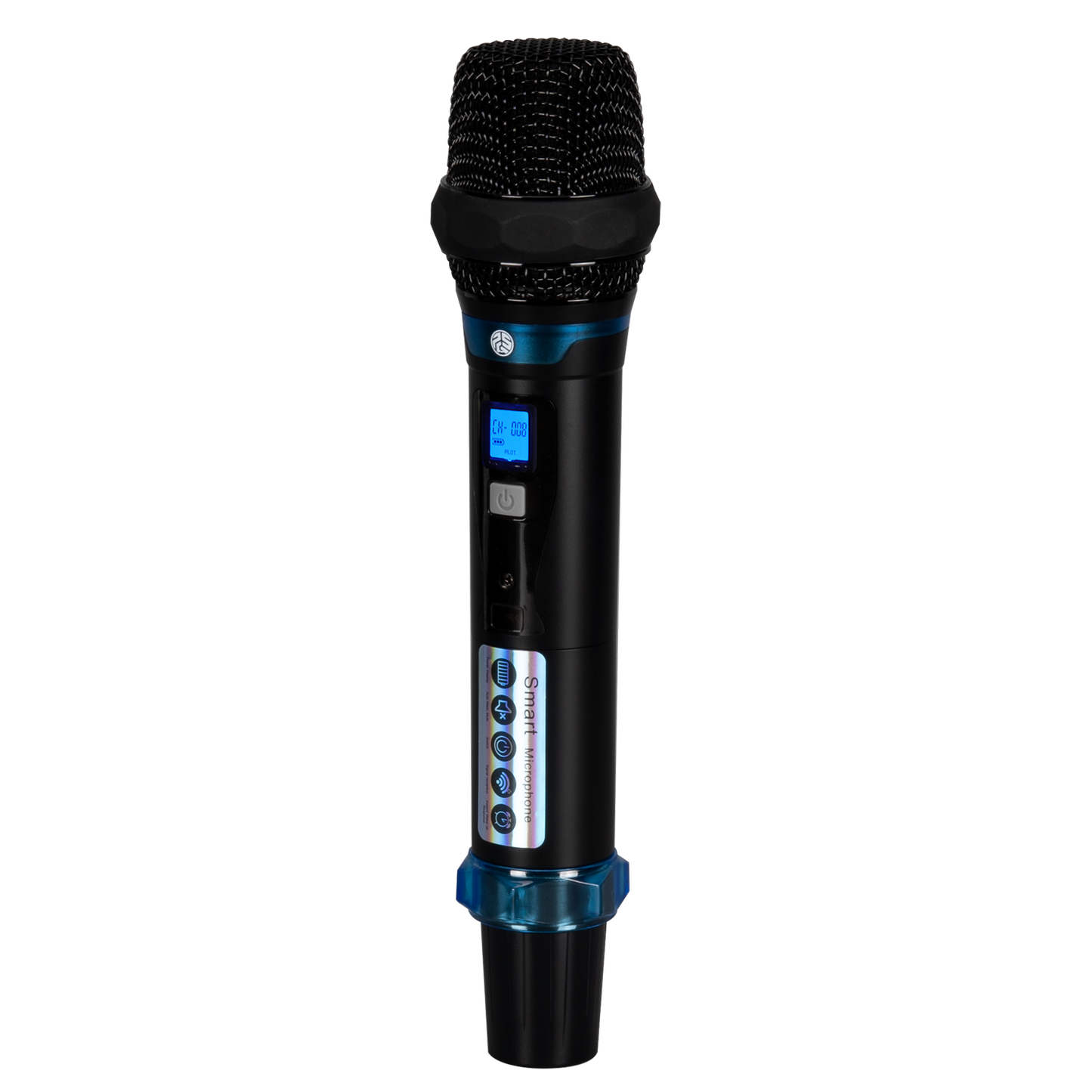

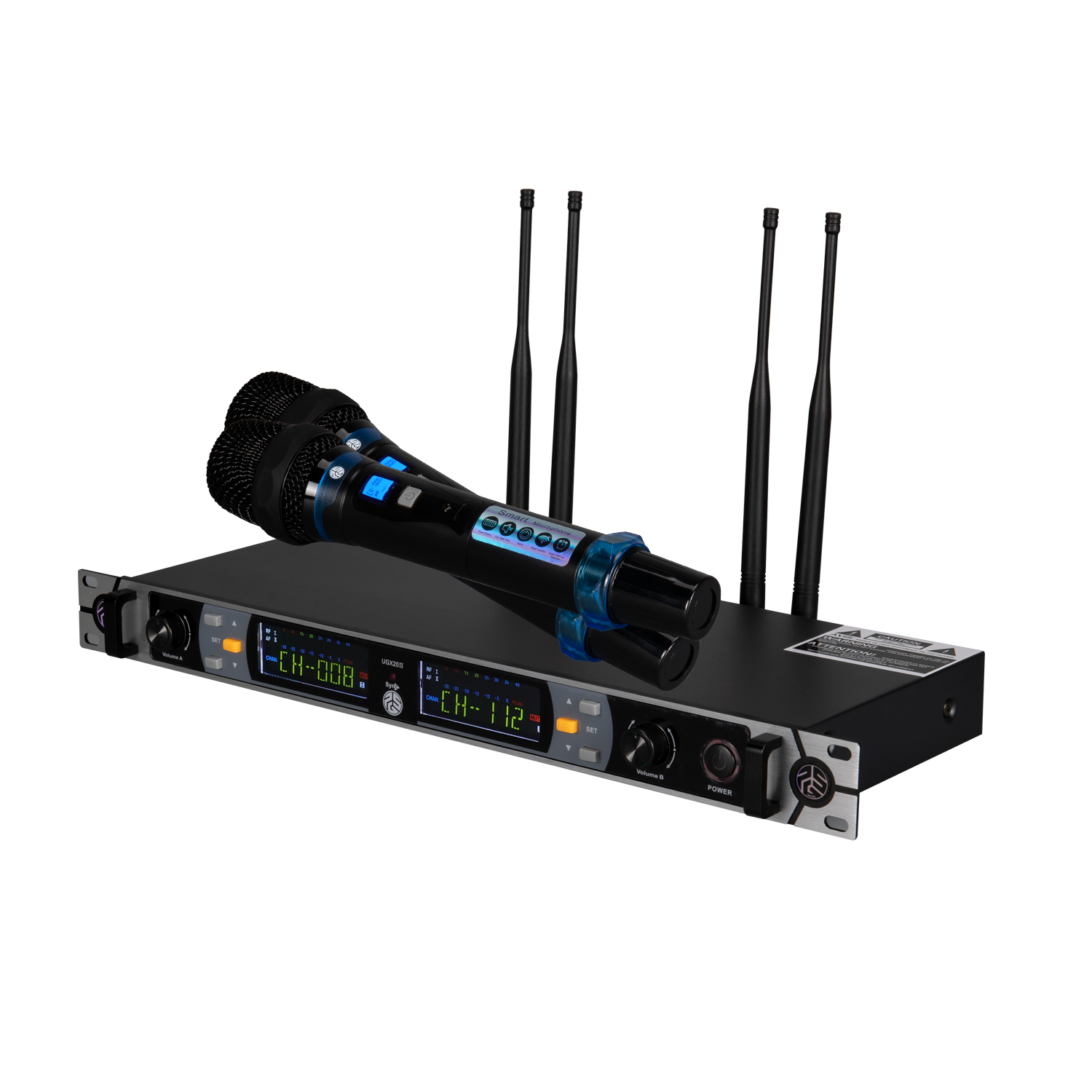

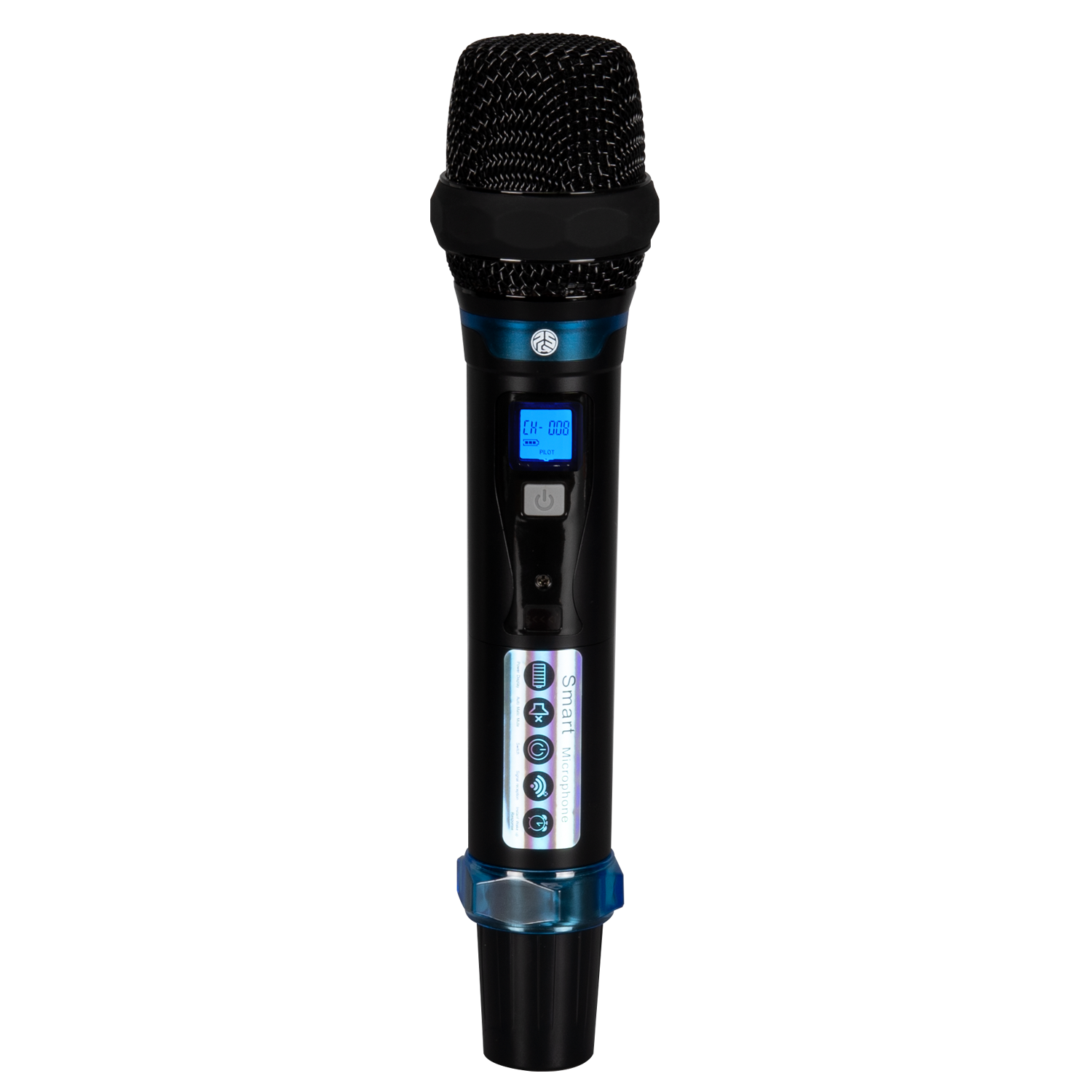

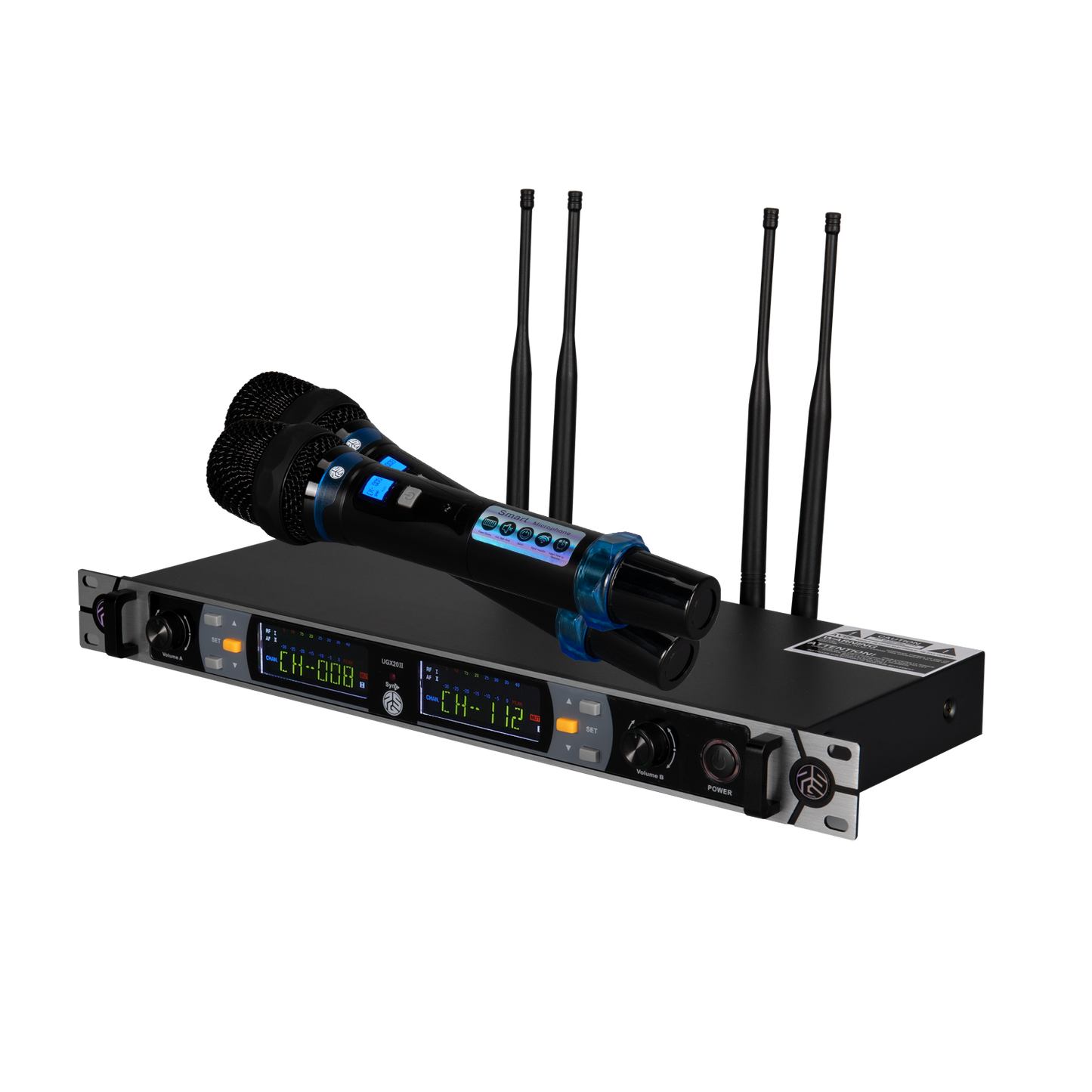

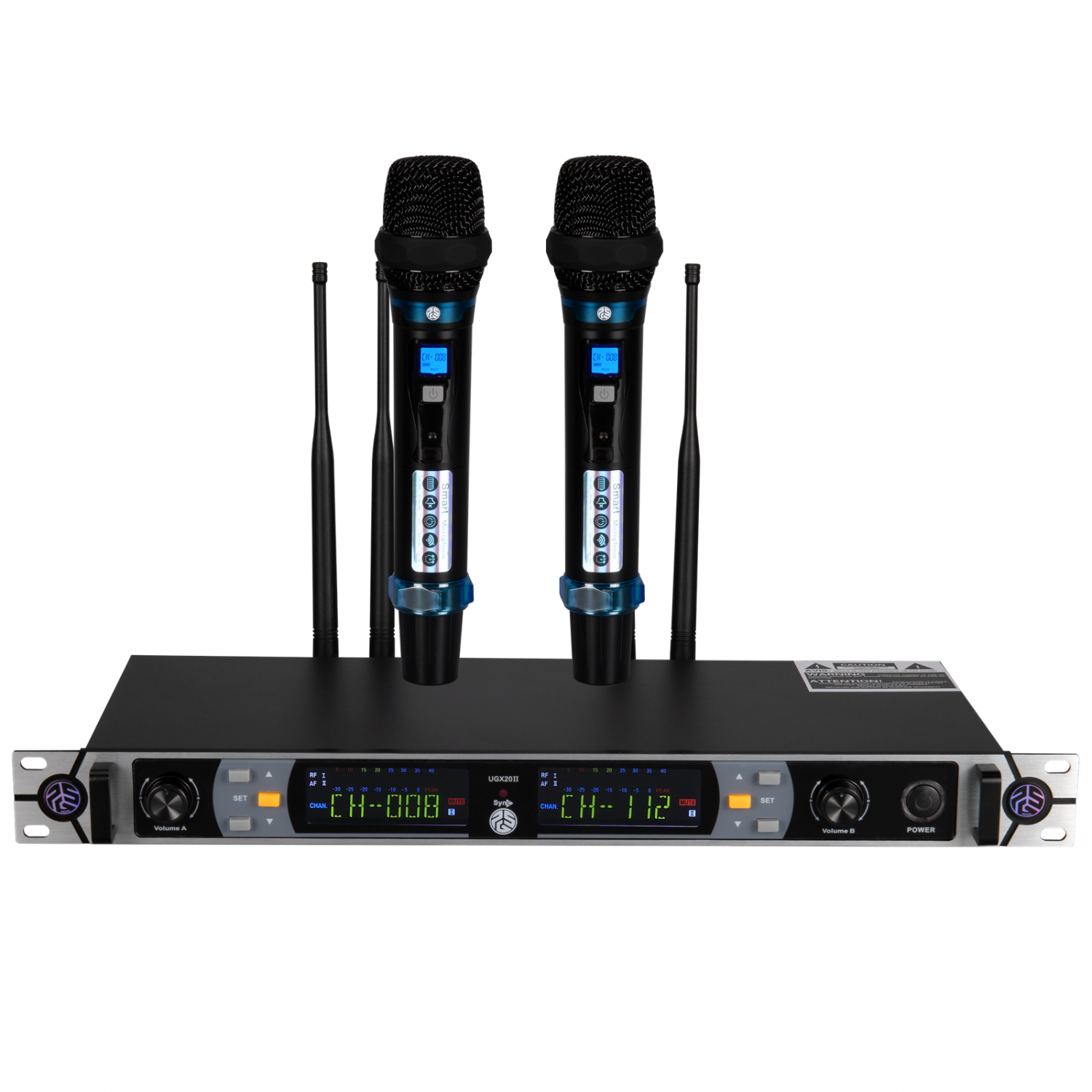

The UGX-20II is a professional 2-channel UHF wireless microphone system engineered for reliability, clarity, and long-range performance. Operating in the 640–690 MHz band with two independent frequency groups, it delivers ultra-stable transmission and eliminates unwanted distortion. Both handheld microphones include LCD frequency displays and independent volume controls for precise sound balance. With a line-of-sight range of up to 250 ft, the UGX-20II ensures consistent performance in any venue.
Built with a full metal chassis and professional cardioid dynamic capsules, this system provides clear, pure, full-range vocal sound. With 2 × 100 selectable channels, users can easily find interference-free frequencies, and up to 100 compatible systems can be used simultaneously—perfect for churches, weddings, karaoke events, DJs, public speaking, and more.

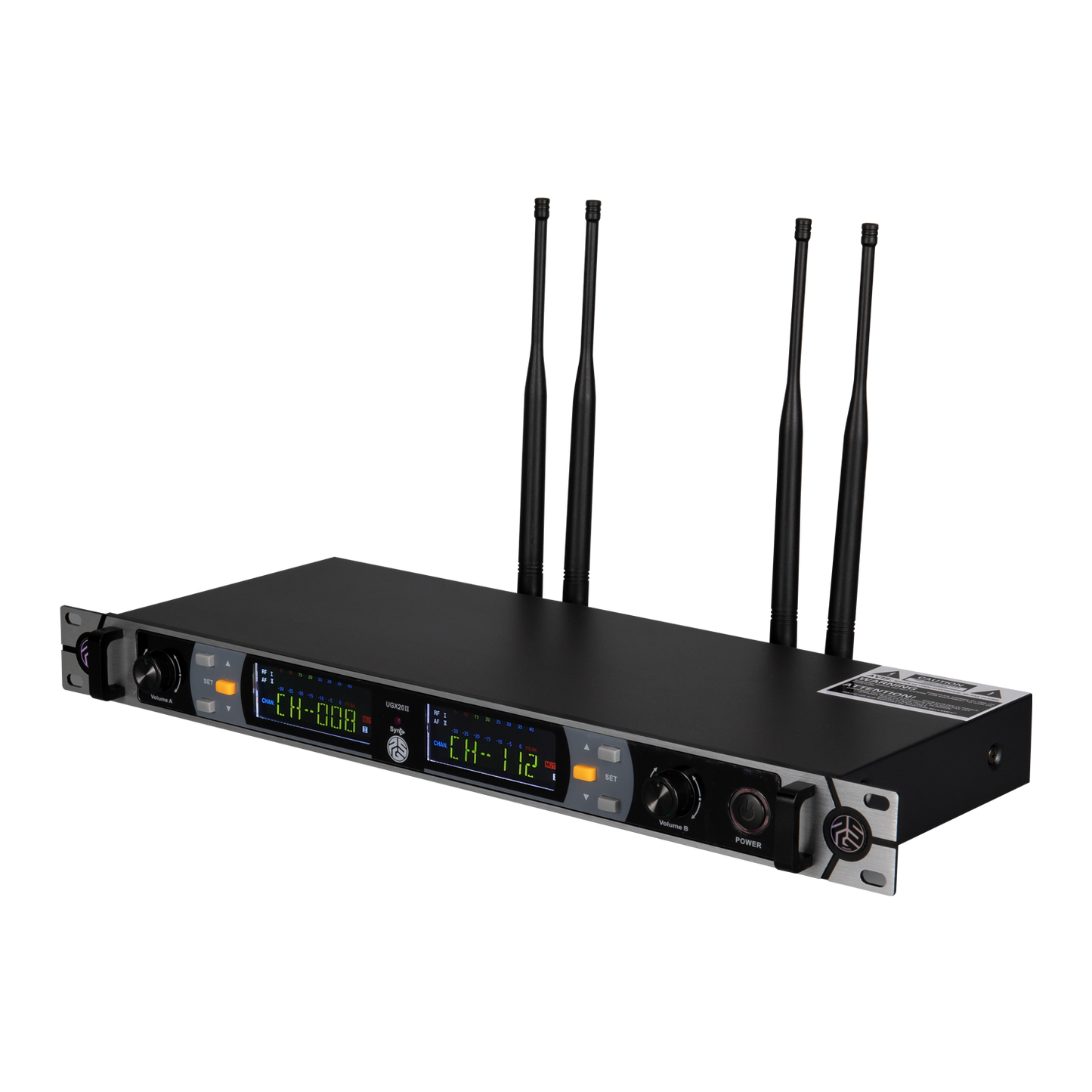

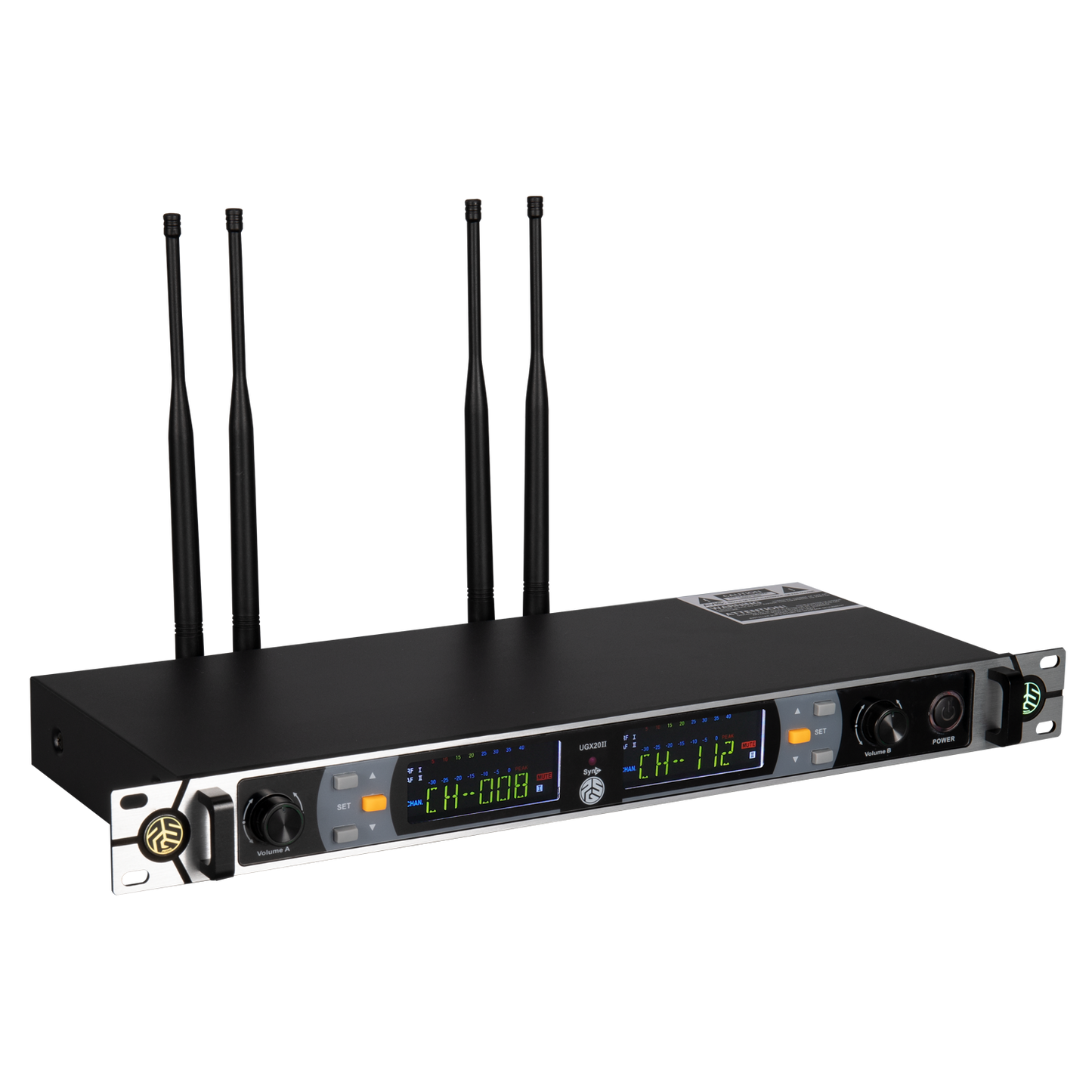

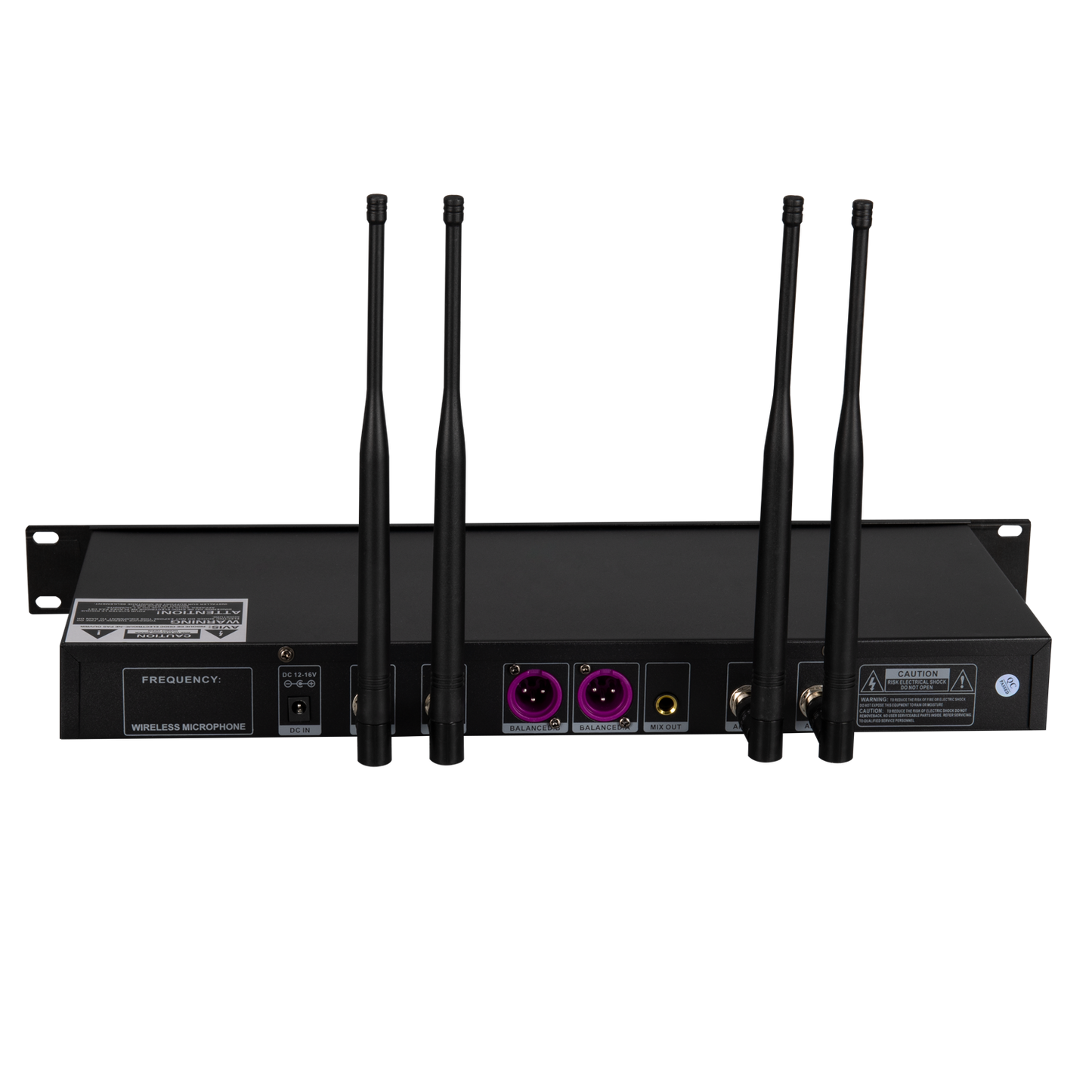

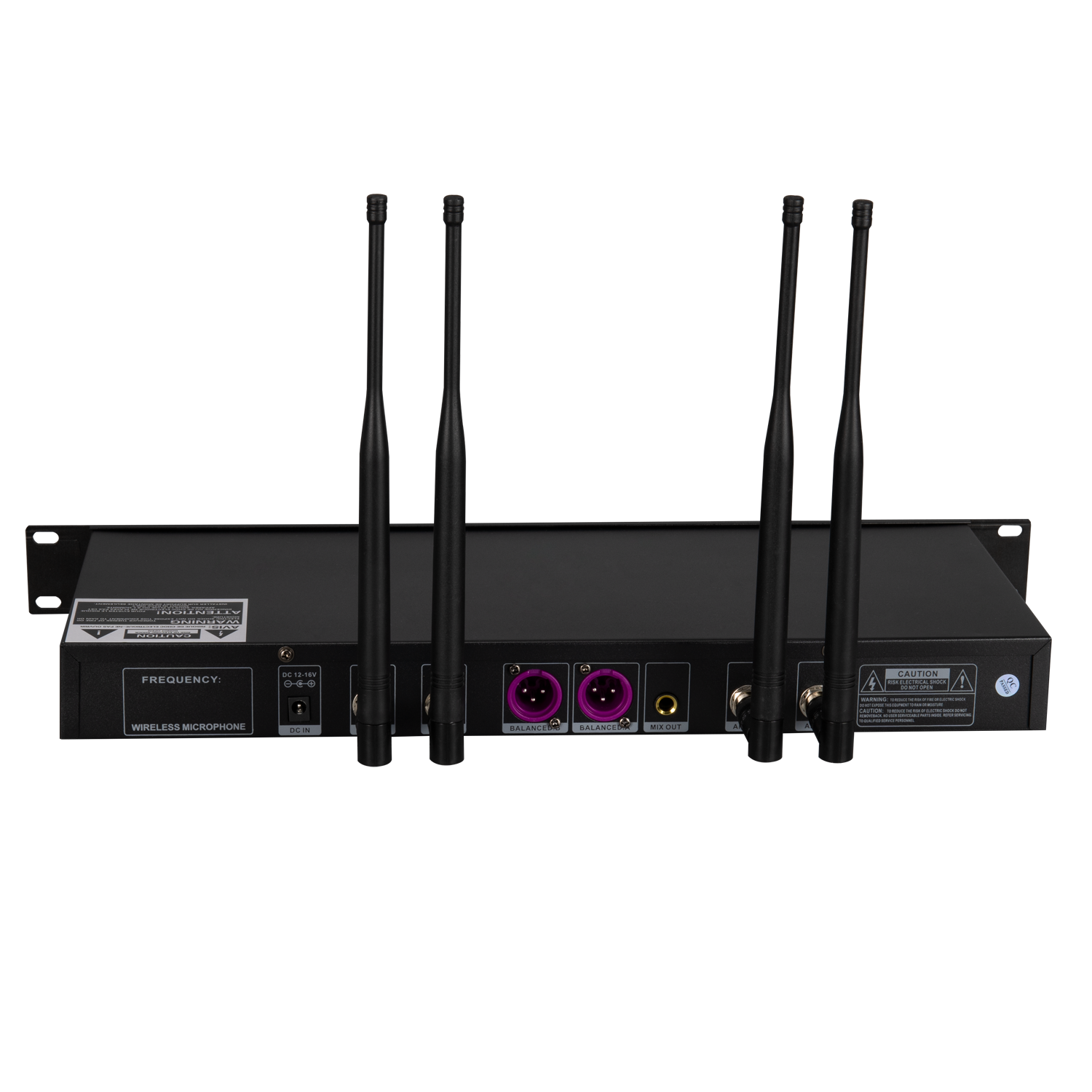

The receiver includes both XLR A/B outputs and a 6.35mm mixed output, allowing simple integration into any PA system. Just power on the receiver and microphones—pairing is automatic. (Note: Not compatible with laptops, iPads, or phones. Each microphone requires 2× AA batteries, not included.)
Package Includes:

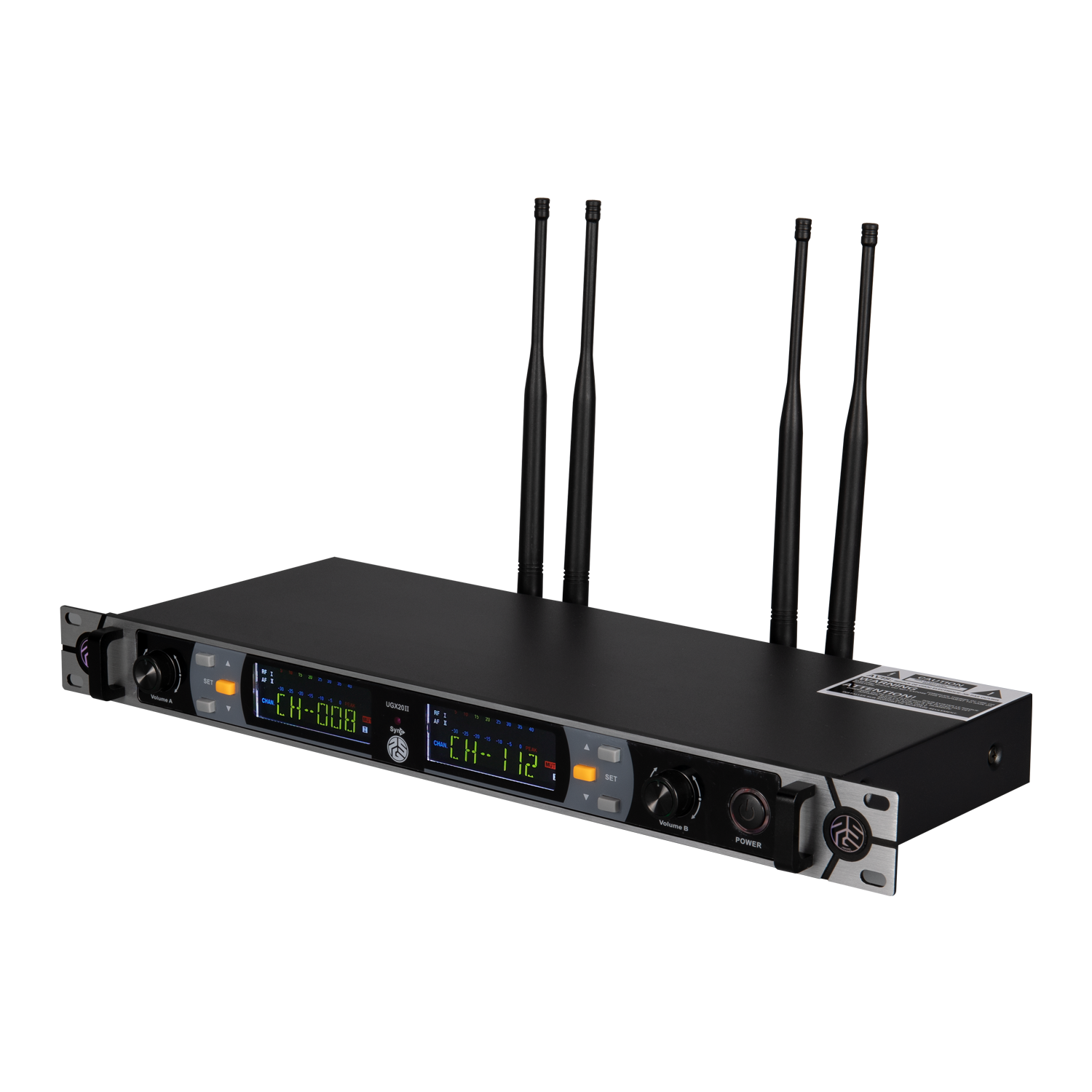

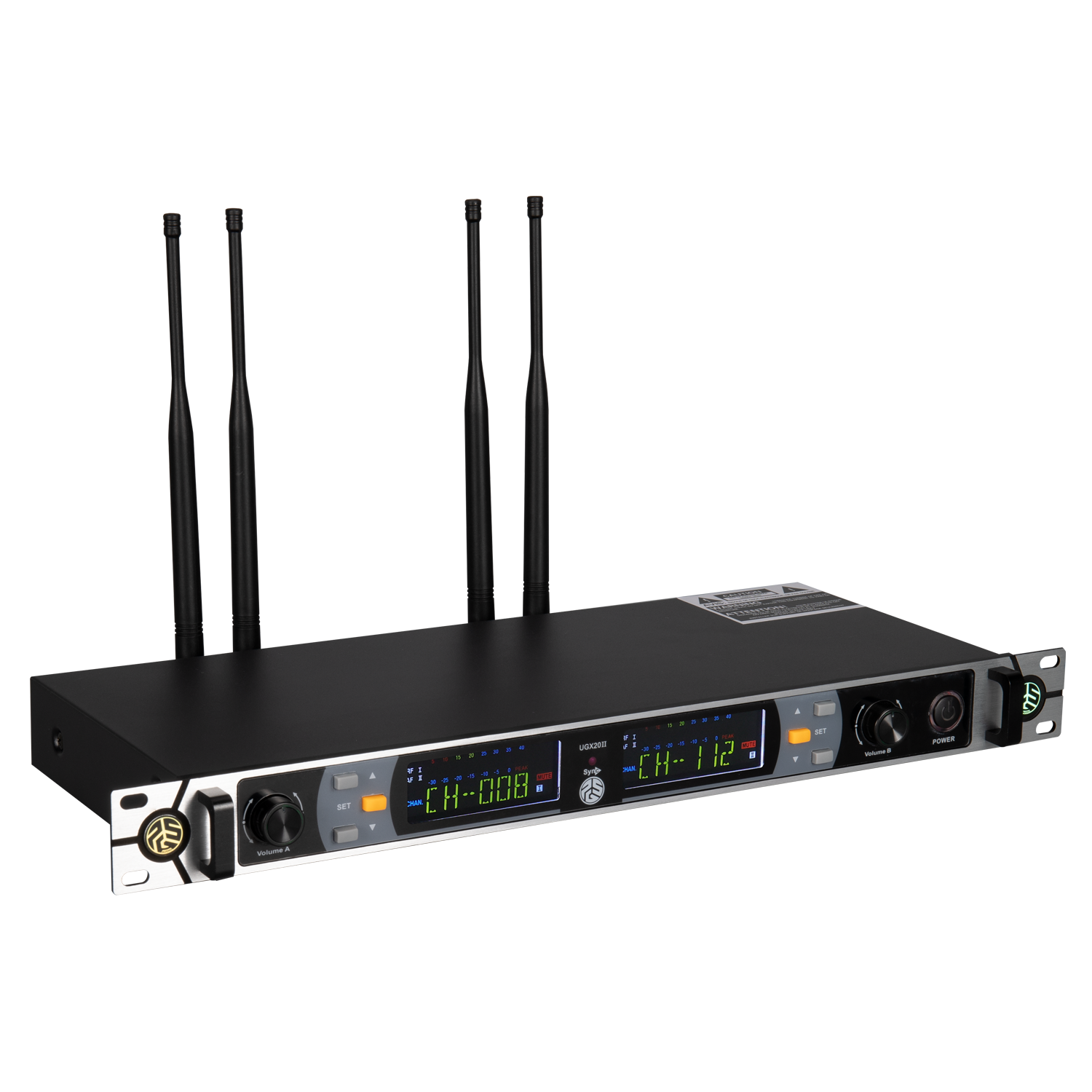

• 1 × 2-Channel UHF wireless receiver
• 4 × Antennas

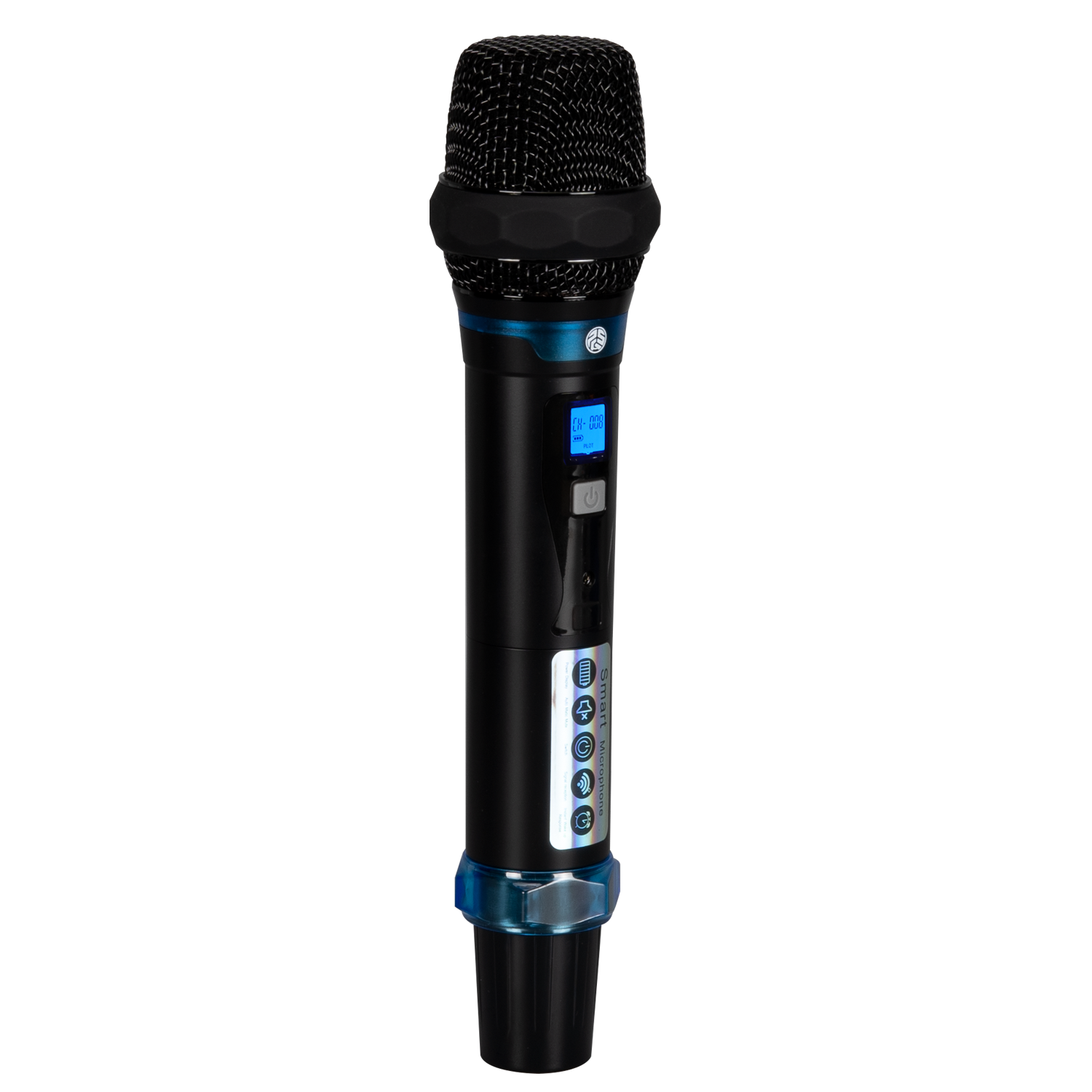

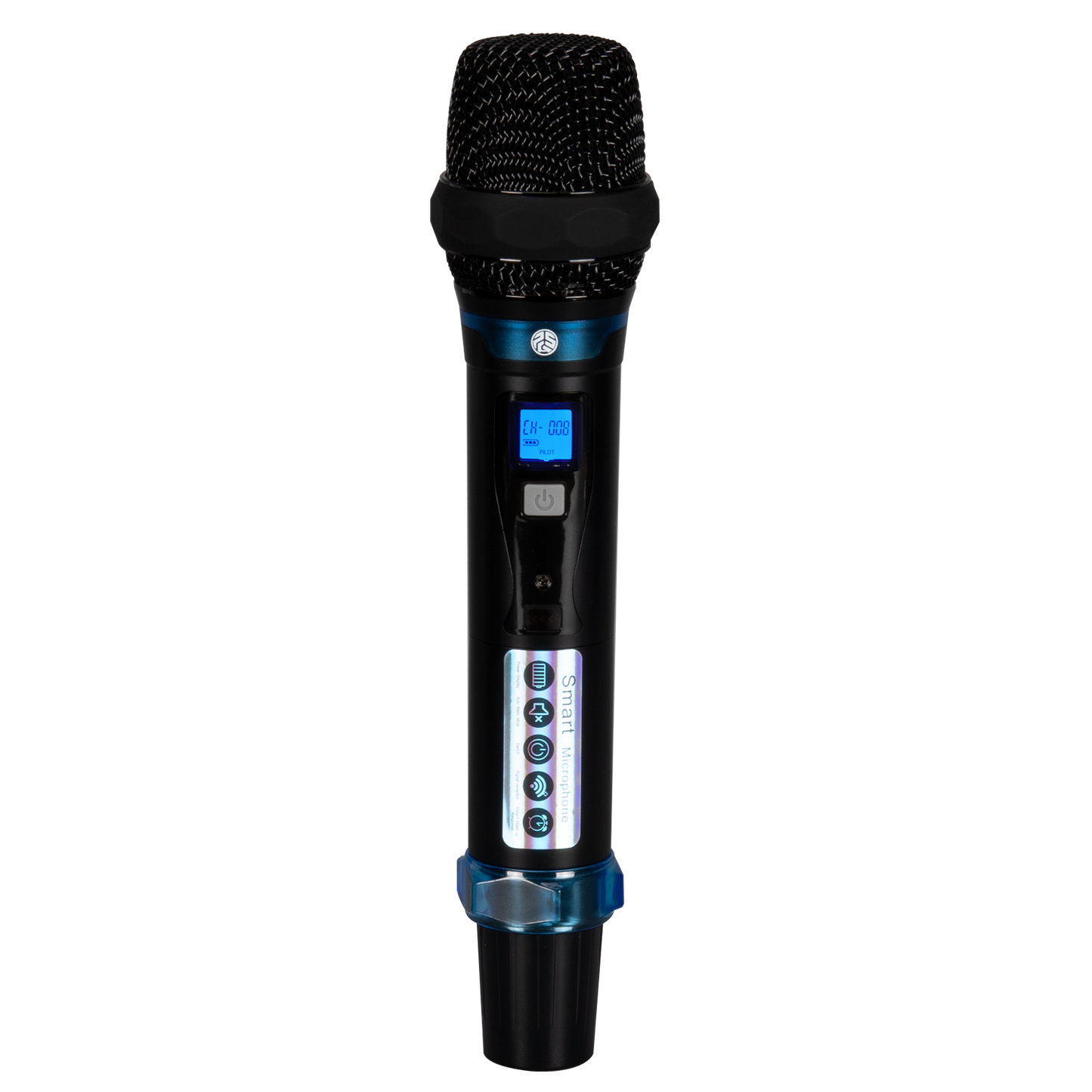

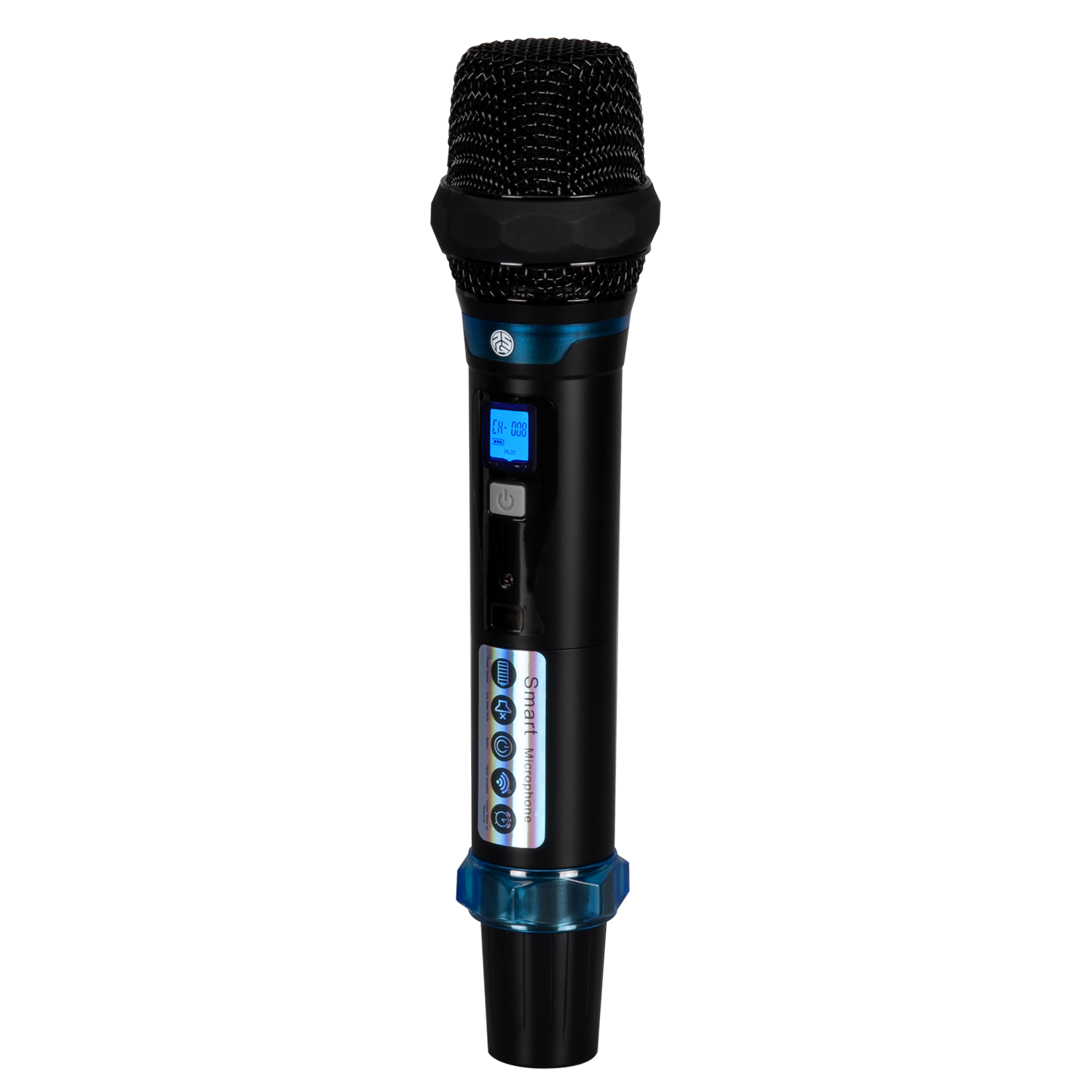

• 2 × UHF handheld microphones
• 1 × Power adapter
• 1 × 1/4″ audio cable
• 1 × User manual
• 2 × Anti-rolling rings
UGX-20II Technical Specifications
| Specification | Details |
|---|---|
| Frequency Range | 640–690 MHz |
| Modulation Mode | FM |
| Frequency Stability | ±10 ppm |
| Transmitter Power | 3–30 mW |
| Adjustable Channels | 100 × 2 |
| Receiving Sensitivity | –95 ~ –60 dBm |
| Frequency Response | 40 Hz – 18 kHz |
| Total Harmonic Distortion | ≤ 0.5% (at 1 kHz) |
| Transmitter Power Supply | 2 × AA batteries |
| Signal-to-Noise Ratio | ≥ 110 dB |
| Receiver Power Supply | DC 12V |
