Skp Stage In Ear Wireless Monitoring System UHF

UHF 600-928MHz frequency range

Four levels RF output selectable

True Diversity receiver for maximum range and dropout protection

Illuminated graphic display

PLL Synthesized circuit

100 pre-set selectable channels

Wireless synchronization of receiver parameter from transmitter

Increased range for audio sensitivity

LCD display shows the RF level, AF level, channel and frequency

EIA standard 1/2U rack-mountable metal chassis

Up to 80m line-of-sight operating range (without electromagnetic interference)

Designed for professional stage performance applications

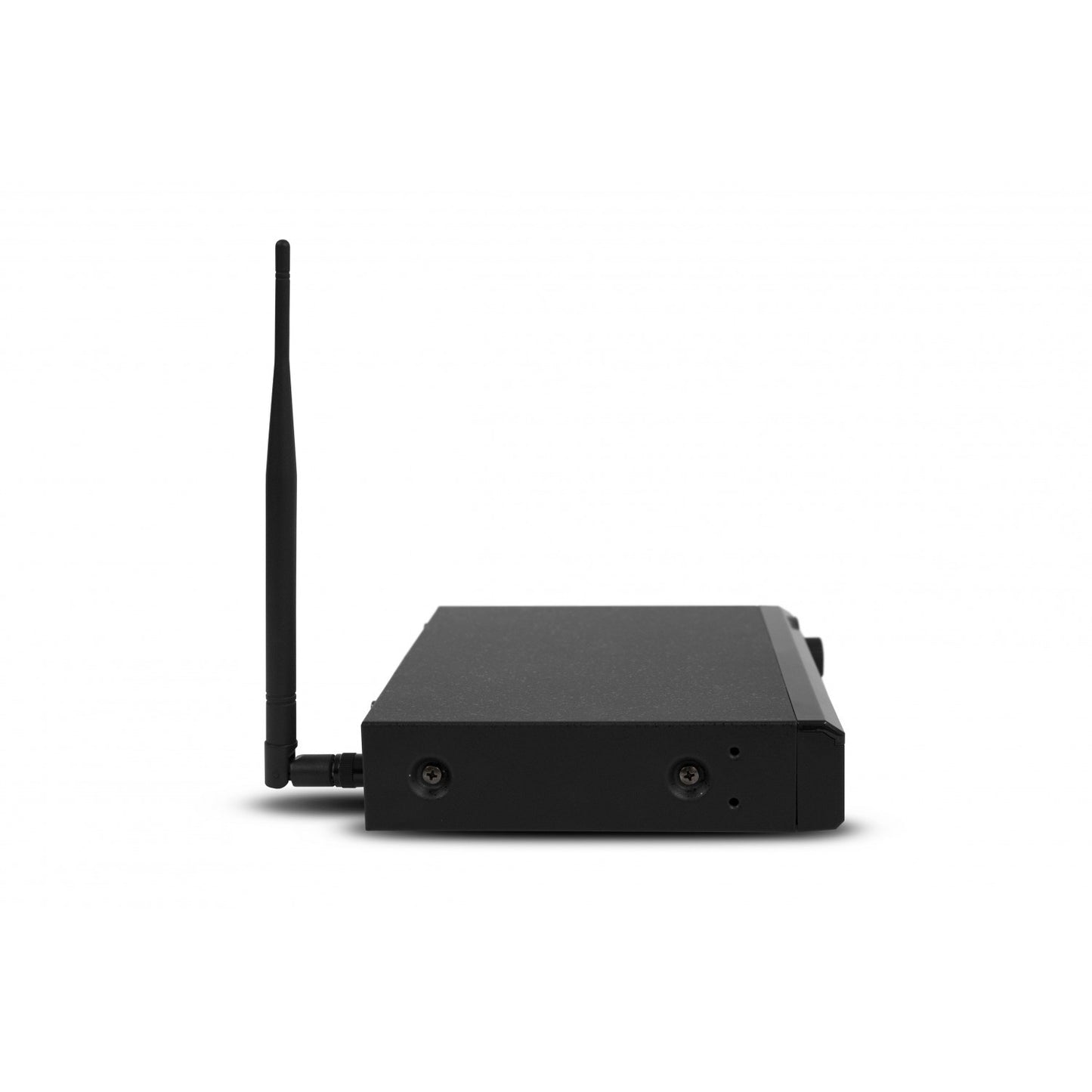

TRANSMITTER (MAIN UNIT)

Frequency Range: 600-952MHz (Region dependent)

Frequency Type: F3E

Channels: 100

RF Output Power: 10mW/ 20mW/ 50mW/ 100mW

Frequency Response 30Hz-18KHz+/-3dB

S/N Ratio: ≥105dB

T.H.D: <0.5% at 1KHz

Dynamic Range: >100dB

Audio Input: 2x XLR/6.35mm Jack

Antenna: TNC

Power Supply: DC12V/600mA

Dimensions( L*W*H): 210*170*44mm

RECEIVER (BELT-PACK)

Frequency Preparation: PLL Synthesized Control

Type of reception: True Diversity

Receive Sensitivity: -11dBm (sinad≥30dB)

Earphone output: 3.5mmφ/ 16ohms 105mW

Synchronization: Infrared

Antenna: 1/4 wave Length Wire Type

Power Supply: 2*AA battery

Operating time: 10h (depending on batteries)

Dimensions( L*W*H): 110*63*21mm
